Veneer Patching Machine
By replacing defective areas with precisely cut patches, this machine enhances product value while reducing raw material waste and production costs. It is widely used in plywood factories, furniture manufacturing plants, and engineered wood panel industries.
1. Detailed Product Description
Key working process:

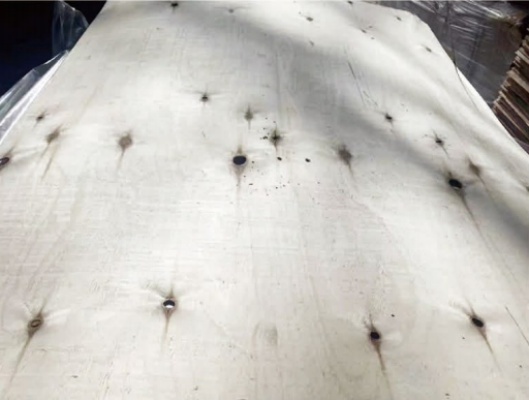

- Detect veneer defects (holes, cracks, knots)
- Punch out defective areas
- Insert matching veneer patches

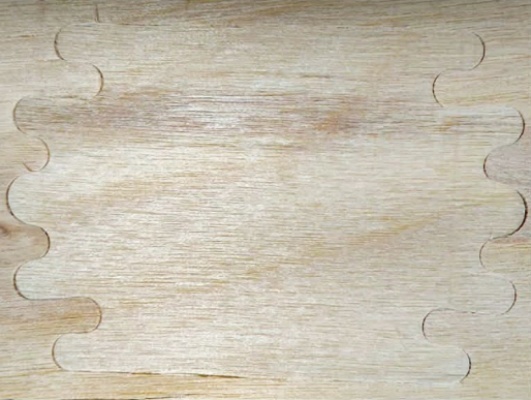

- Press and fix the patch seamlessly
Modern machines can be:
- Manual type
- Semi-automatic type
- Fully automatic CNC-controlled systems
The machine ensures consistent, accurate, and high-speed patching, significantly outperforming traditional manual repair methods.
2. Product Features and Advantages
2.1 High-Efficiency Veneer Patching Machine
Thisveneer patching machine delivers fast and continuous operation, completing each patching cycle within seconds. Compared with traditional manual repair, this automatic veneer patching machine significantly increases productivity and ensures consistent output quality for plywood production lines.
2.2 Precision Veneer Repair and Superior Quality
Equipped with high-precision molds, the veneer repair machine ensures tight and seamless patch insertion. This improves the surface quality of veneer sheets and enhances the final grade of plywood panels, making it an ideal plywood veneer patcher for high-end applications.
2.3 Cost-Effective Wood Veneer Repair Solution
By repairing defects such as holes, cracks, and knots, this wood veneer repair equipment allows manufacturers to reuse lower-grade veneer. This reduces raw material waste and lowers production costs, making it a highly economical veneer defect repair machine.
2.4 Flexible and Customizable Operation

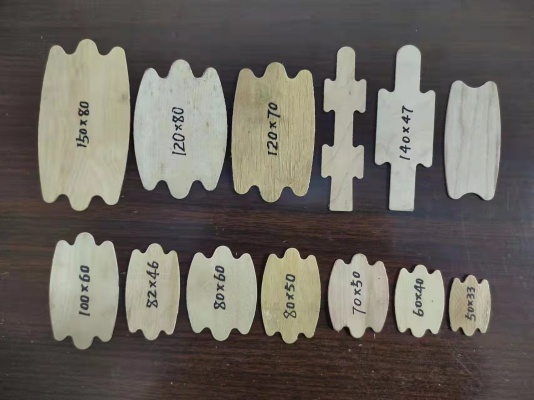

Theveneer mending machine supports various patch shapes and sizes, with customizable molds for different veneer types and defects. It is suitable for a wide range of wood species and production requirements, offering a flexible automatic veneer defect patching solution.
2.5 Durable Structure and Easy Operation
Built with a heavy-duty frame and stable hydraulic or pneumatic system, this hydraulic veneer patch machine ensures long-term durability. The user-friendly control system reduces labor intensity, making it an efficient and reliable veneer patching machine for plywood factoryuse.
3. Main Applications and Use Scenarios
3.1 Plywood Manufacturing Industry
Theveneer patching machine for plywood factory is widely used to repair core veneers before assembly. This plywood veneer patcher helps eliminate defects and ensures higher bonding quality and surface performance in finished plywood products.
3.2 Furniture and Decorative Panel Production
In furniture manufacturing, the veneer repair machine is used to fix surface veneers, improving appearance and consistency. This wood veneer repair equipment is essential for producing high-quality decorative panels and furniture components.
3.3 Veneer Processing and Grading Plants
Theveneer defect repair machine is applied during veneer grading and processing to upgrade lower-grade sheets. As an efficient automatic veneer patching machine, it helps manufacturers maximize material utilization and increase product value.
3.4 Engineered Wood and Panel Industry
Thisveneer mending machine is also suitable for MDF, HDF, and other engineered wood panels where surface veneer quality is critical. It serves as a reliable veneer hole repairing machine in continuous production environments.
3.5 Export-Oriented Wood Product Manufacturing
For export markets with strict quality standards, the high efficiency veneer repair machine ensures that veneer sheets meet international requirements. This automatic veneer defect patching solution improves competitiveness and reduces rejection rates.
4. Technical Parameters

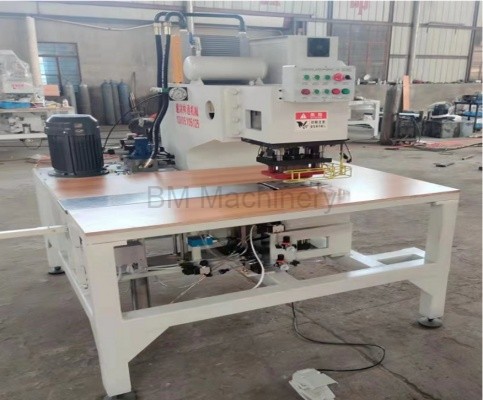

2X4FT Hydraulic Automatic veneer patching machine
| Parameter | Specification |
|---|---|
| Arm Bend to Mold Center Distance | 740mm |
| Veneer Repair Thickness Range | 0.8-3.6mm (The repair bar guide plate is supplied according to the actual veneer thickness range; if there is a significant thickness difference, the guide plate needs to be replaced) |
| Repair Mold Dimensions | 150*80mm |
| Upper and Lower Punch Drive Method | Hydraulic Pump Station |
| Human-Machine Interface | Button Control |
| Repair Bar Feeding Method | Automatic continuation, servo motor feeding |
| Veneer Patching Speed | ~1.2s/ time |
| Air Source Pressure | 4-6 kg/cm² |
| Machine Features | Traditional model, stable and reliable operation, easy to understand structural principles |
| Dimensions (LWH) | 1650*1950*1700mm |
| Shipping Dimensions (LWH) | 1650*1550*1700mm |
| Weight | ~1400kgs |

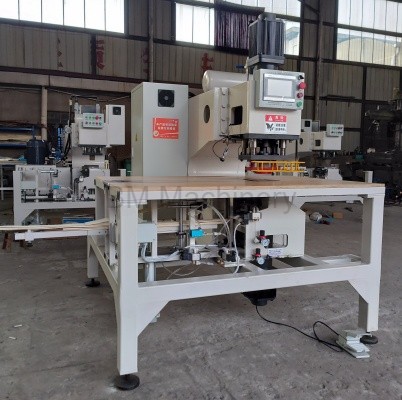

4X8FT Hydraulic Automatic veneer patching machine
| Parameter | Specification |
|---|---|
| Distance from arm bend to mold Center | 1240mm X1240mm |
| Thickness range of patch veneer | 1.5~3 mm(guide plate shall be provided according to the actual thickness range) |
| Patch mold size | Min.4533mm~Max.5070mm |
| Supplying mode of patch panel | cyliner motor automatic feeding |
| Speed of patching veneer | About once per second |
| Total power | About 4.5kW |
| Motor power of oil pump | 4kW-6P or 6kW-4P |
| Air supply pressure | 4~8kg/cm2 |
| Overall dimensions(LWH) | 165019502000mm 245019502100mm |
| Delivery size(LWH) | 165015502000mm 245015502100mm |
| Packing form | Simple packaging with wrapping film |
| Weight | About 1300kg |
