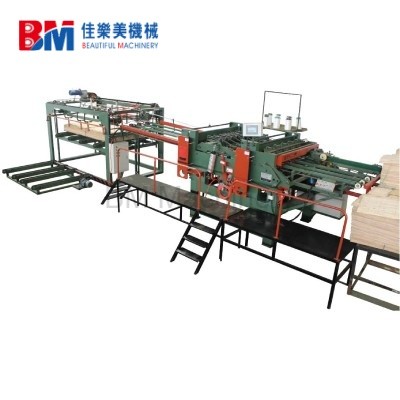

4FT Short Core Veneer Composer
4FT Short Core Veneer Composer
The 4FT Short Core Veneer Composer is an advanced automatic machine designed for efficiently joining short core veneers into standard plywood sheets. It plays a critical role in modern plywood production lines by transforming irregular, short, or waste veneer pieces into high-quality, uniform core boards.
With intelligent detection, precise alignment, and automated gluing & jointing technology, this machine significantly improves material utilization, reduces labor costs, and enhances final plywood quality. It is widely used in the manufacturing of plywood, LVL, furniture panels, and construction boards.
The machine features automatic veneer feeding, alignment correction, glue application, and hot-melt thread stitching or adhesive bonding system to ensure strong and stable joints. Typical parameters include working width 1,300 mm (4ft), veneer thickness 1.2–4.0 mm, feeding speed 20–45 m/min, and PLC automatic control system.
It is an ideal solution for plywood manufacturers looking to improve core veneer recovery rate, reduce labor intensity, and enhance overall production efficiency
With intelligent detection, precise alignment, and automated gluing & jointing technology, this machine significantly improves material utilization, reduces labor costs, and enhances final plywood quality. It is widely used in the manufacturing of plywood, LVL, furniture panels, and construction boards.
The machine features automatic veneer feeding, alignment correction, glue application, and hot-melt thread stitching or adhesive bonding system to ensure strong and stable joints. Typical parameters include working width 1,300 mm (4ft), veneer thickness 1.2–4.0 mm, feeding speed 20–45 m/min, and PLC automatic control system.
It is an ideal solution for plywood manufacturers looking to improve core veneer recovery rate, reduce labor intensity, and enhance overall production efficiency
Quantity:
4FT Short Core Veneer Composer
1. Product Detailed Description
The 4FT short core veneer composer is a fully automatic system that integrates multiple processes into one continuous workflow:
- Automatic veneer feeding and positioning
- Thickness and width detection
- Edge trimming and defect correction
- Glue application (hot melt glue + thread reinforcement)
- Core veneer jointing and pressing
- Cutting to standard size (4ft width)
- Automatic stacking

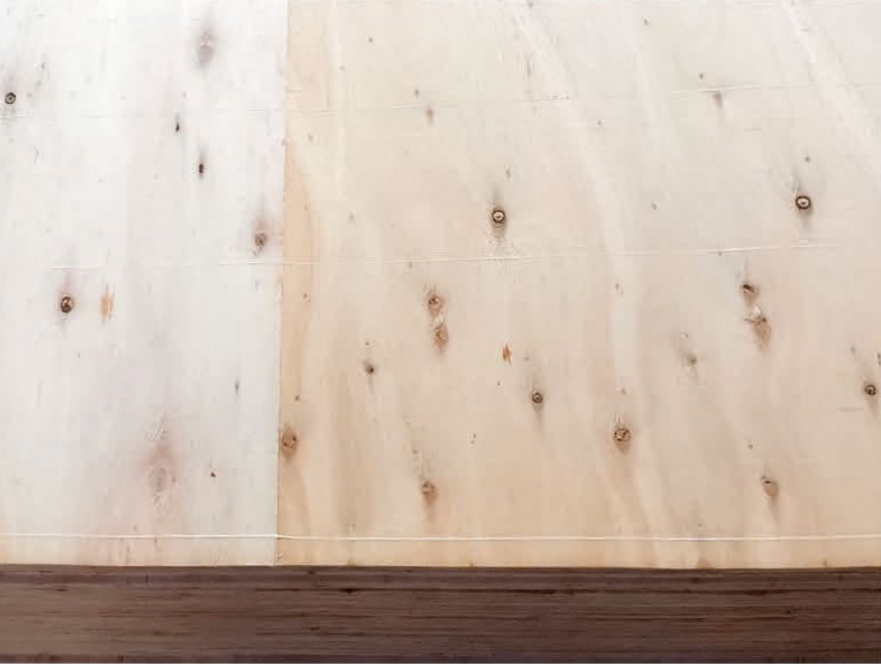

The machine can process veneers with uneven sizes, irregular shapes, or varying thickness, converting them into standard, high-strength veneer sheets suitable for further plywood processing.
This equipment is especially suitable for short-length core veneers, maximizing material utilization and reducing waste in plywood production.
2. Product Features & Advantages
2.1 High Automation & Labor Saving
- PLC control system enables fully automatic operation
- Only 1–2 operators required
- Continuous production improves efficiency
2.2 Intelligent Detection System
- Automatically detects veneer thickness, width, and defects
- Ensures accurate cutting and precise jointing
- Minimizes manual intervention and errors
2.3 Strong & Stable Jointing Technology

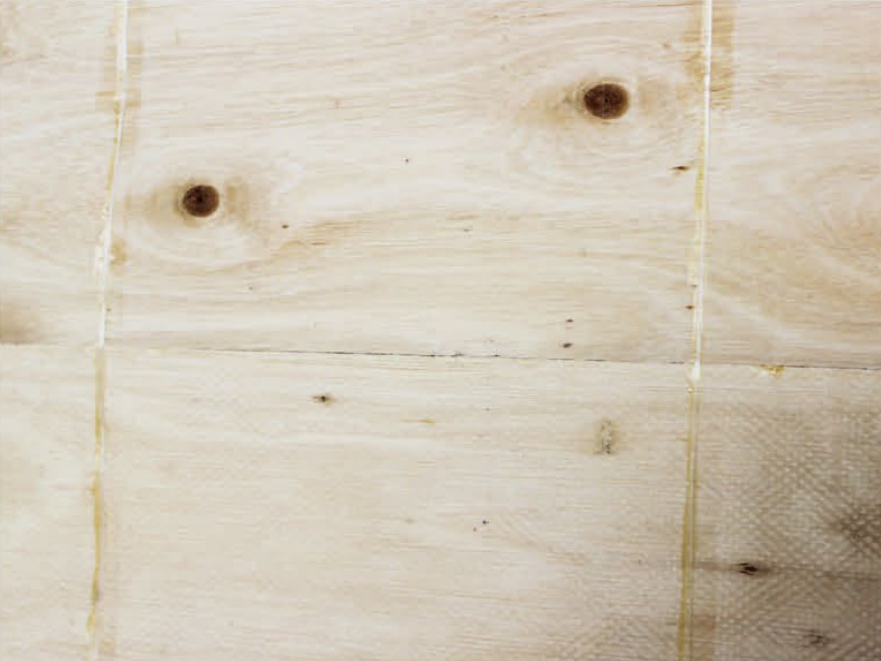

- Uses hot melt glue + high-strength thread reinforcement
- Ensures strong bonding and prevents cracking
- Improves tensile strength and flexibility of veneer
2.4 High Material Utilization
- Effectively uses short and irregular veneers
- Reduces raw material waste
- Increases economic efficiency
2.5 Servo Control & Precision Alignment
- Servo-driven system ensures accurate positioning
- Prevents overlap, gaps, and misalignment
- Produces smooth and uniform veneer sheets
2.6 Stable Performance & Low Maintenance
- Reliable components ensure long service life
- Low failure rate and easy maintenance
- Suitable for continuous industrial production
3. Applications & Use Scenarios
3.1 Plywood Manufacturing
- Core veneer composing for commercial plywood
- Film-faced plywood
- Blockboard and construction boards
3.2 Engineered Wood Products
- LVL (Laminated Veneer Lumber)
- Flooring substrates
- Structural panels
3.3 Furniture Industry
- Furniture boards
- Cabinet panels
- Decorative plywood
3.4 Recycling & Material Optimization
- Reuse of short or waste veneers
- Ideal for factories aiming to reduce material costs
3.5 Production Line Integration
- Can be integrated into automatic plywood production lines
- Suitable for small, medium, and large factories
4. Technical Parameter
| Item | Specification |
|---|---|
| Overall Dimensions (L×W×H) | 13m × 4m × 2.3 m |
| Total Overall (With Stacker) | 15 × 6.2 m |
| Power Supply | 380 V / 24.5 KW |
| Output Speed | 36 m/min |
| Thickness Range | 1.2 – 4.0 mm |
| Output Size | 4’ × 4’ / 4’ × 8’ |
| Air Consumption | 320 L/min |
| Weight | 6.3 T |
