Narrow Veneer Composer+ Stacker
Narrow Veneer Composer+ Stacker

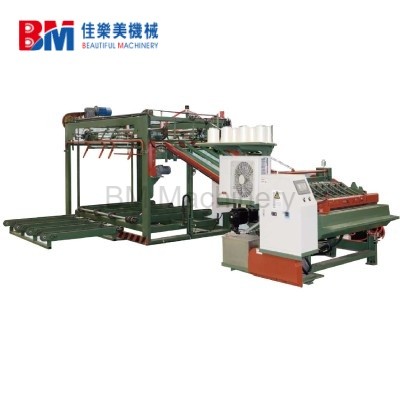

The Narrow Veneer Composer + Stacker is an advanced automated solution designed for efficiently joining, aligning, and stacking narrow veneer strips into continuous sheets. Widely used in plywood, LVL, and engineered wood production lines, this machine significantly improves productivity, reduces labor costs, and ensures consistent veneer quality. With intelligent control systems and precision engineering, it is an ideal choice for modern wood processing factories seeking automation and efficiency.
Quantity:
Narrow Veneer Composer+ Stacker
1. Product Detailed Description
The Narrow Veneer Composer + Stacker integrates veneer composing and stacking into one streamlined system. It automatically detects veneer width, thickness, and defects, then precisely arranges and joins narrow veneer strips using glue thread or hot-melt technology.
After composing, the system transfers the finished veneer sheets to an automatic stacking unit, ensuring neat and uniform piles ready for the next production stage. The machine is equipped with PLC control, touch screen operation, and optional vision inspection systems for enhanced accuracy.
This integrated design reduces manual intervention and ensures continuous, stable production.
2. Product Features and Advantages
High Automation
- Fully automatic composing, aligning, gluing, and stacking
- PLC intelligent control system for precise operation
- Touchscreen interface for easy parameter adjustment
High Efficiency
- Continuous feeding and composing improve production speed
- Reduced downtime with stable and synchronized processes
- Suitable for high-volume industrial production
Superior Product Quality
- Accurate veneer alignment ensures uniform panel quality
- Strong bonding with advanced gluing systems
- Reduced gaps and overlaps in composed veneer sheets
Labor Cost Reduction
- Minimizes manual handling and workforce requirements
- Automated stacking reduces operator fatigue
Flexible Application
- Adjustable for different veneer widths and thicknesses
- Compatible with various wood species (poplar, eucalyptus, birch, etc.)
Durable Structure
- Heavy-duty steel frame ensures long service life
- High-quality components for stable performance
3. Main Applications & Detailed Scenarios
Plywood Manufacturing
- Composing narrow veneers into full-width sheets
- Improving panel consistency and reducing waste
LVL (Laminated Veneer Lumber) Production
- Preparing continuous veneer layers for structural beams
- Ensuring strength and uniform bonding
Furniture Board Production
- Producing core veneers for furniture panels
- Enhancing surface quality and stability
Engineered Wood Industry
- Suitable for blockboard, MDF surface veneer, and decorative panels
Automated Production Lines
- Integrated with veneer dryers, glue spreaders, and hot presses
- Ideal for smart factory setups
4. Technical Parameters
| Description | Parameters |
| Upper Knife Length | 1350(675x2No.s)mm |
Down Knife length | 1350mm |
| Veneer Length | 800-1300mm |
| Veneer Width | 50-100mm |
| Veneer Thickness | 1.0-4.0mm |
Feeding speed | 0-20 Max.m/Min |
| Number of glue threads | 7 Rows |
| Air consumption | 60 Liter/Min |
| Total power required | 12.1kW |
| In- feed conveyor | 3kW |
| Water cooler | 1.5kW |
| Water circulation pump | 0.1kW |
| Heater for glue melting for edge and yam application | 5.5kW |
| Dimension clipper | 1.5kW |
| Cooling fan | 0.5kW |
| Total gross weight | 2000kg |
| Packing size | L:3.5m*W:2.3m*H:2.3m |
| Floor space | L:7.4m*W:3.5m*H:2.3m |
