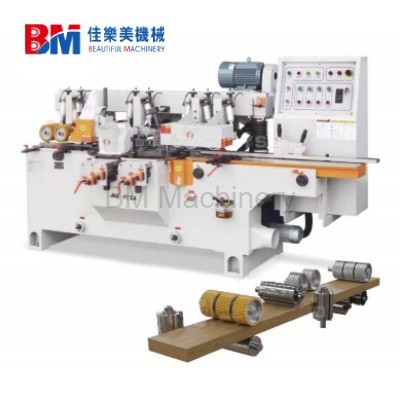

Six Spindle Four Sided Planer
This automatic four side planer is widely used in industrial wood processing, especially for furniture manufacturing, flooring production, and structural timber processing. With six spindles working simultaneously, it ensures stable operation, high precision, and excellent surface finishing.
1. Product Description
Main Features
- Six spindle configuration for four-side processing
- Feeding speed: 10–35 m/min (standard), up to 50 m/min (high-speed)
- Processing width: 15–150 mm
- Processing thickness: 10–120 mm
- Heavy-duty structure (1800 kg) for stable operation
- Independent motors for strong and stable cutting
2. Product Features & Advantages
The heavy duty four sided planer offers multiple advantages for industrial users:
High Efficiency
With six spindles operating simultaneously, the high speed wood planer machine can complete multiple processes in one pass, greatly improving production efficiency.
Superior Surface Quality
Precision spindles and stable feeding systems ensure smooth and clean finishes, reducing sanding and post-processing workload.
Strong Stability
The machine body is made of high-quality cast iron, ensuring vibration resistance and long service life.
Flexible Processing
The wood moulding machine supports complex profiles, grooves, and shaping operations, making it suitable for various customized woodworking needs.
Automation & Safety
- Stepless speed control feeding system
- Fully enclosed safety cover
- Overload protection and emergency stop system
3. Applications & Use Cases
The six spindle four sided planer machine is widely used across multiple woodworking industries:
Furniture Manufacturing
Ideal for processing panels, frames, and decorative components with consistent dimensions.
Door & Window Production
Perfect for manufacturing door frames, window frames, and molding components.
Flooring Industry
Used for high-precision planing and shaping of wooden flooring materials.
Construction & Decoration
Suitable for producing skirting boards, beams, and structural wood components.
Customized Wood Processing
Supports complex profiling for handrails, moldings, and decorative wood products.
4. Technical Parameters
| Item | MB-415A |
|---|---|
| Maximum Processing Width | 150 mm |
| Minimum Processing Width | 15 mm |
| Maximum Processing Thickness | 120 mm |
| Minimum Processing Thickness | 10 mm |
| Feeding Speed | 10–35 m/min (Standard Model)20–50 m/min (High-Speed Model) |
| Spindle Diameter | 40 mm |
| Upper Spindle Motor Power | 5.5 kW / 7.5 kW |
| Lower Spindle Motor Power | 4 kW / 5.5 kW |
| Left Cutter Motor Power | 4 kW / 5.5 kW |
| Right Cutter Motor Power | 4 kW / 5.5 kW |
| Feed Motor Power | 3 kW / 4 kW |
| Dust Collection Port | 140 mm × 5 |
| Machine Weight | 1800 kg |
| Total Power | 21.25 kW / 25.75 kW |
5. Conclusion
The six spindle four sided planer is an essential woodworking planer machine for modern factories seeking high efficiency, precision, and automation. With its powerful performance, multi-functional capabilities, and stable operation, it is an ideal solution for large-scale wood processing and customized production.
