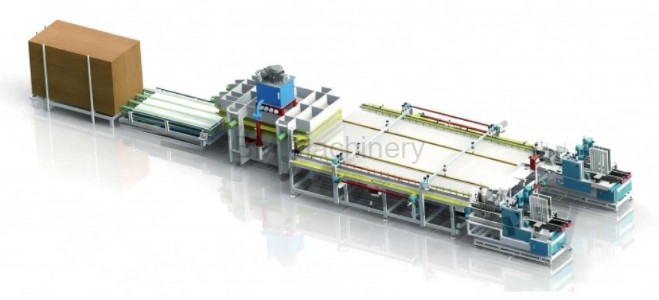

3-Press 2-Layer Blockboard Automatic Production Line
With modern automation technology and PLC controlled blockboard line systems, it ensures stable performance, reduced labor costs, and improved product consistency. This blockboard making machine is widely used in the furniture and construction industries to produce high-quality panels with excellent strength and durability.
1. Product Description
Double-Channel Automatic Panel Laminating Line – including 3-Press 2-Hot Press Machine,Double-Channel Automatic Panel Laminator, and Automatic Stacking Rack
Equipment Dimensions: Length 16.5 m × Width 4.5 m × Height 2.5 m; Total Power: 25 kW
1.1 3-Press 2-Hot Press Machine:
- Gantry-type frame structure with 20 mm thick steel plates
- Main hydraulic cylinders: 160×260 mm × 6 pcs
- Lifting cylinders: 80×260 mm × 2 pcs
- Hot press plates: 1400×2600×42 mm, electroplated with grooves
- Features fast hydraulic lifting system and microcomputer intelligent control
1.2 Double-Channel Automatic Panel Laminator:
- Equipped with double pressure rollers and a gluing system (single-side edge gluing)
- Automatic edge wrapping
- CNC-adjustable channel width
- Worktablemade of galvanized sheet for easy glue cleaning and corrosion resistance
1.3 Automatic Stacking Rack:
- Automatic panel unloading and tapping
- Microcomputer intelligent control
2. Product Features & Advantages
The automatic blockboard production line offers several advantages:
High Efficiency
The integrated design of this high efficiency blockboard line significantly increases output while reducing manual intervention. Automated systems streamline the workflow and improve productivity.
Stable Product Quality
With advanced pressing technology and synchronized control systems, the blockboard hot press line ensures uniform density and excellent bonding strength. Similar automated lines are known for improving product consistency and reducing defects.
Intelligent Control
Equipped with a PLC controlled blockboard line, the system allows precise control of temperature, pressure, and timing, ensuring optimal production conditions.
Cost Reduction
Automation reduces labor costs and minimizes material waste, making it a cost-effective blockboard manufacturing solution.
Strong Adaptability
This automatic panel production system can process various raw materials such as wood strips, veneer, and recycled wood, offering flexibility for different production needs.
3. Applications & Use Cases
The blockboard production line is widely used in multiple industries:
Furniture Manufacturing
Ideal for producing panels used in cabinets, wardrobes, and office furniture.
Construction Industry
Suitable for wall panels, partitions, and structural boards, as blockboard panels are commonly used in building applications.
Interior Decoration
Used for decorative boards, door cores, and surface panels.
Packaging & Industrial Use
Applicable for packaging materials and industrial panel production requiring durability and stability.
This furniture board production equipment ensures high-quality output for diverse applications.
4. Technical Parameters
| Item | Specification |
|---|---|
| Brand | BM |
| Working Size | 2600 × 1400 mm |
| Max. Pressure | 240 T |
| Working Layer | 2 layers |
| Hot Press Plate Size | 3600 × 1400 × 42 mm |
| Work Distance | 120 mm |
| Cylinder Specifications | 6-Φ140 / 8-Φ125 |
| Installed Power | 12.3 KW |
| Dimension (L × W × H) | 9640 × 2460 × 2580 mm |
| Net Weight | 9.3 T |
5. Conclusion
The 3-Press 2-Layer Blockboard Automatic Production Line is a highly efficient and intelligent automatic blockboard production line designed for modern panel manufacturing. With its advanced automation, stable performance, and wide application range, it is an ideal blockboard manufacturing solution for factories aiming to improve productivity and product quality.
