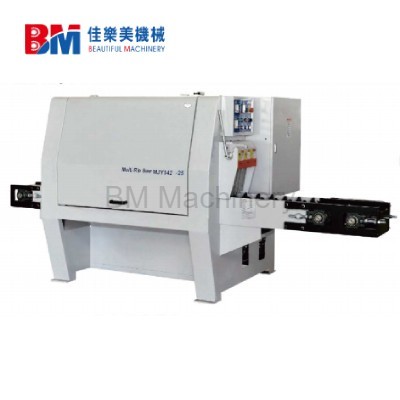

Top & Bottom Multi-Blade Log Saw
Top & Bottom Multi-Blade Log Saw
The Top & Bottom Multi-Blade Log Saw is a high-performance multi-blade log saw designed for efficient and precise wood processing. This advanced top and bottom multi-blade saw is widely used in modern sawmills and wood processing plants to improve cutting efficiency and reduce material waste. As a reliable log cutting saw machine, it ensures smooth cutting surfaces and consistent output for various types of logs.
Quantity:
Top & Bottom Multi-Blade Log Saw
1. Product Description
This machine is designed for specialized ripping round log. Main characters and functions as follows:
Machine has up saw arbor and down saw arbor with small and thin saw blade diameter, can process big diameter log to save energy consumption.
Machine has up saw arbor and down saw arbor with small and thin saw blade diameter, can process big diameter log to save energy consumption.
- Flat saw cutting surface without planning;
- Multi cutting at a time which improves efficiency.
- Automatic centering to improve using rate of wood.
- Drive feeding to increase tension. Stable feeding, can saw short, rough and hard wood.
- Cooling saw blades and spindles by water to remove grease which can keep them longer life. Convenient saw blade changing.
- Only need to change spacer size for different cutting without adjustment.
2. Product Features & Advantages
The high efficiency log saw offers multiple advantages that make it a preferred choice in the wood industry:
- High Efficiency: The top and bottom multi-blade saw enables simultaneous multi-piece cutting, significantly increasing output.
- Precision Cutting: Advanced alignment technology ensures high precision and smooth finishes.
- Durability: Built with heavy-duty materials, this heavy duty multi blade saw for hardwood cutting guarantees long service life.
- Energy Saving: Optimized power system reduces energy consumption while maintaining performance.
- Automation: The automatic multi blade saw for wood processing factory minimizes labor costs and improves operational safety.
3. Applications & Use Cases
The multi-blade log saw is widely used in various wood processing industries:
- Sawmills: Ideal log cutting saw machine for large-scale lumber production.
- Furniture Manufacturing: Suitable for cutting logs into boards for furniture components.
- Construction Material Processing: Efficient processing of wood for building materials.
- Plywood & Panel Industry: Works as an efficient log saw machine for sawmill production line, ensuring uniform thickness for further processing.
- Hardwood Processing Plants: Perfect for high precision multi blade log saw for lumber processing.
4. Technical Parameters
| Serial NO ./ Model | MJY142-25 |
| Machine total power | 61.5KW |
| Voltage/Frequency | 3HP-380V, 50HZ |
| Feeding Speed | 0-10m/min |
| Processing Length | ≥500mm |
| Processing Diameter | Φ80-250mm |
| Appearance Size(L*W*H) | 3630*1430*1540mm |
| Product Weight | 2200kg |
| Blade Size | Φ355*Φ55 |
| Spacer Size | Φ90*Φ55 |
| Extra Wood Conveyor | Optional, Can removable |
5. Conclusion
In conclusion, the Top & Bottom Multi-Blade Log Saw is a powerful and reliable multi-blade log saw that combines efficiency, precision, and durability. Whether used in sawmills or advanced wood processing factories, this top and bottom multi-blade saw provides an ideal solution for high-volume log cutting. It is an essential log cutting saw machine for businesses aiming to improve productivity and reduce costs.
