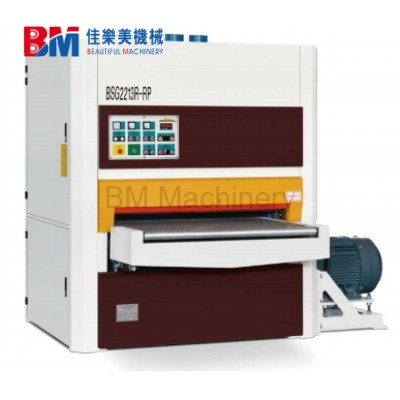

Light-Duty Double-Heads Single Side Plywood Polishing Machine
Light-Duty Double-Heads Single Side Plywood Polishing Machine
The Light-Duty Double-Heads Single Side Plywood Polishing Machine is an efficient and cost-effective solution designed for smoothing and finishing plywood surfaces. Equipped with dual polishing heads and a single-side processing structure, this machine ensures consistent surface quality while maintaining stable performance for small to medium-scale production lines.
As the final stage in plywood manufacturing, polishing machines play a critical role in achieving precise thickness calibration and smooth surface finishing, improving both product quality and downstream processing efficiency.
As the final stage in plywood manufacturing, polishing machines play a critical role in achieving precise thickness calibration and smooth surface finishing, improving both product quality and downstream processing efficiency.
Quantity:
Light-Duty Double-Heads Single Side Plywood Polishing Machine
1. Detailed Product Description
This machine adopts a double-head configuration, allowing sequential sanding and polishing in a single pass. The single-side design is optimized for flexibility, making it suitable for factories that require high-quality finishing without the need for double-side processing.
The equipment integrates:
- Precision sanding rollers
- Stable feeding system
- Adjustable pressure and speed control
- Efficient dust collection interface
It is widely used for plywood, blockboard, MDF, and other wood-based panels, ensuring uniform thickness and smooth surfaces.
2. Features & Advantages

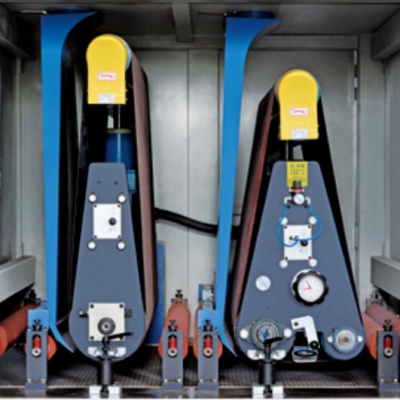

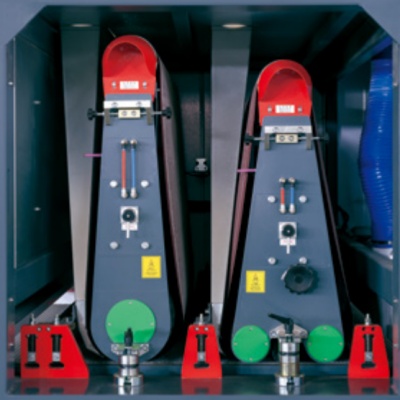

2.1 Dual Polishing Heads for Higher Efficiency
- Two sanding heads perform coarse and fine polishing
- Reduces repeated processing
- Improves surface consistency
2.2 Single-Side Processing Design
- Ideal for flexible production lines
- Lower investment compared to double-side machines
- Easy operation and maintenance
2.3 Stable Feeding & Precision Control
- Conveyor system ensures smooth material transfer
- Adjustable feed speed for different panel requirements
- High precision thickness calibration
2.4 Energy-Efficient & Cost-Effective
- Light-duty structure reduces energy consumption
- Lower maintenance costs
- Suitable for SMEs and entry-level production lines
2.5 Wide Material Compatibility
- Applicable for plywood, MDF, particle board, veneer panels
- Works with various thickness ranges
2.6 Durable Structure
- High-quality steel frame
- Long service life
- Stable operation with minimal vibration
3. Main Applications & Scenarios
3.1 Plywood Manufacturing Plants
- Final sanding and polishing process
- Ensures smooth and uniform surface before coating or lamination
3.2 Furniture Production
- Surface finishing for cabinets, tables, and panels
- Enhances product appearance and quality
3.3 Decorative Board Processing
- Used for laminated boards and decorative panels
- Improves adhesion for further treatments
3.4 Small & Medium Woodworking Factories
- Ideal for factories with moderate production capacity
- Cost-effective alternative to heavy-duty sanding machines
4. Technical Parameter
| Sanding width | 40-1300mm | Main motor 2 | 22kW |
| Sanding thickness | 1-80mm | Feeding motor | 4kW |
| Sanding length | >650mm | Brushing motor | 0.37kW |
| Abrasive belt speed 1 | 25m/s | Lifting motor | 0.37kW |
| Abrasive belt speed 2 | 20.5m/s | Feeding speed | 7.5~37m/min |
| Sanding belt dimension | 1330*2500mm | Operating pressure | 0.6MPa(constant pressure) |
| Net motors power | 56.74kW | Capacity of dust extraction | 1000m3/h |
| Main motor 1 | 30kW | Dimension(L*W*H) | 2900*2000*2360mm |
Performance characteristics introduce
- This wide belt sander is mainly used for calibrating and polishing of glulam, solid board, composite floor board, blockboard, plywood, etc.
- The high rigidity and high strength body with heavy plate makes the stability of this machine greatly improved compared with conventional machines.
- The lifting system adopts the high-precision ball screw mechanism, which greatly improves the accuracy and stability of the machine.
- The control panel with press-button, dial plate and digital display makes the operation easy.

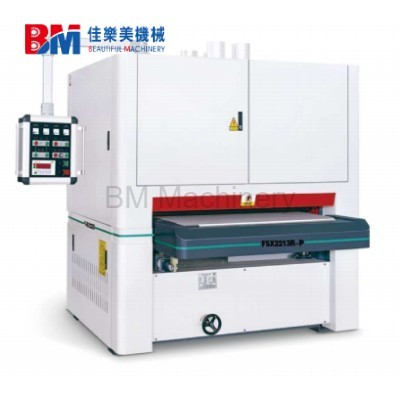

| Model | FSX2213R-RP | FSX2213R-P |
| Processing width | 40~1300mm | 40~1300mm |
| Processing thickness | 3~80mm | 3~80mm |
| Processing length | ≥550mm | ≥550mm |
| Speed of sanding belt | 22m/s | 22m/s, 20m/s |
| Speed of feeding | 6~30m/min | 6~50m/min |
| Size of sanding belt | 1340*2500mm | 1340*2500mm |
| Main motor power | 37kW, 22kW | 22kW, 15kW |
| Working air pressure | 0.55MPa | 0.55MPa |
| Speed of suction | 25~30m/s | 25~30m/s |
| Volume of suction | 8000m3/h | 6000m3/h |
| Compressed air consumption | 0.12m3/min | 0.12m3/min |
| Overall dimension | 2500*2100*2200mm | 2600*2100*2200mm |
| Net weight | 4200kg | 4200kg |
