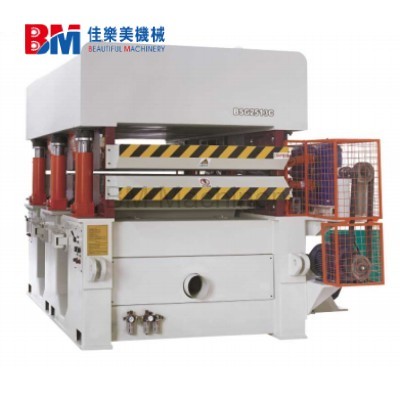

Heavy-Duty Double-Heads Bottom Sanding Machine for Plywood
As an essential solution in modern plywood production lines, the automatic bottom sanding machine significantly improves productivity, reduces manual labor, and guarantees superior surface quality. According to industry applications, sanding machines are typically used in the final stage to ensure accurate thickness and smooth finishing of plywood panels.
1. Product Description
Thisdouble heads bottom sanding machine is specially engineered for processing plywood panels with high precision and efficiency.
- Equipped with dual sanding heads, allowing continuous and stable sanding performance
- Adoptswide belt sanding technology for uniform material removal
- Designed for heavy-duty operation, suitable for large-scale plywood factories
- Ensures accurate thickness calibration and smooth bottom surface finishing
- Compatible with various materials such as plywood, MDF, and composite boards
The machine structure is optimized to reduce vibration and maintain stability during high-speed sanding, ensuring long-term reliability and consistent output quality.
2. Product Features & Advantages
High Efficiency Production
Thedouble heads sanding machine enables simultaneous processing, significantly increasing production capacity and reducing processing time.
Precision Thickness Calibration
With advanced sanding control, the machine ensures uniform thickness and minimal tolerance, improving product quality. Double-sided sanding systems are known for maintaining high accuracy and balanced thickness in plywood processing.
Heavy-Duty Structure
Built with a reinforced frame, this heavy duty plywood sander guarantees durability, stability, and long service life under continuous operation.
Smooth Surface Finishing
Thewide belt sanding machine delivers superior surface quality, removing imperfections and preparing panels for coating or lamination.
Automation & Easy Operation
Theautomatic bottom sanding machine features user-friendly controls, reducing operator workload and ensuring consistent results.
3. Applications & Use Cases
Theindustrial plywood sanding machine is widely used in:
Plywood Manufacturing Plants
Ideal for thickness calibration and bottom surface sanding in plywood production lines.
Furniture Industry
Used for sanding panels before painting, laminating, or veneering to achieve smooth finishes.
Wood Panel Processing
Applicable for MDF, particle board, and blockboard sanding operations.
Construction Materials
Suitable for preparing high-quality boards used in construction and decoration.
Flooring & Decorative Panels
Ensures uniform thickness and smooth surfaces for engineered wood flooring and decorative panels.
4. Technical Parameters
| Parameter | Specification |
|---|---|
| Brand | BM |
| Sanding Width | 40–1300 mm |
| Sanding Thickness | 10–80 mm |
| Abrasive Belt Speed | 25 m/s |
| Size of Sanding Belt | 1330 × 2620 mm |
| Voltage Level | 380V 50Hz |
| Main Motor Power | 55KW + 45KW |
| Vacuum Adsorption Power | 5.5KW |
| Transport Reducer Motor Power | 7.5 kW |
| Feeding Speed | 10–30 m/min |
| Lifting Motor Power | 0.75 kW |
| Brush Motor Power | 0.37 kW |
| Total Power | 114.12 KW |
| Operating Pressure | 0.6 MPa (constant pressure) |
| Dust Extraction Air Volume | 15000 m³/h |
| Roller Diameter | 300 mm + 320 mm steel rubber roller |
| Dimensions | 3800 × 3000 × 3100 mm |
| Weight | 18000 KG |
5. Conclusion
Theheavy-duty double heads bottom sanding machine for plywood is a reliable and efficient solution for modern woodworking industries. With its double heads sanding system,wide belt sanding technology, and heavy-duty design, it provides high precision, superior surface quality, and excellent productivity.
For plywood manufacturers seeking consistent performance and automation, this industrial bottom sanding machine is an ideal investment to enhance production efficiency and product quality.
