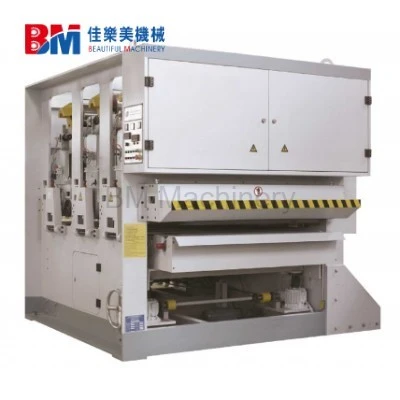

Heavy-Duty Three-Heads Multifunction Plywood Sanding Machine
This heavy duty plywood sanding machine adopts a robust structure, high-power motors, and precision sanding belts to deliver consistent thickness and smooth surfaces. It is widely used in modern plywood production lines to improve efficiency and reduce labor costs.
1. Product Description

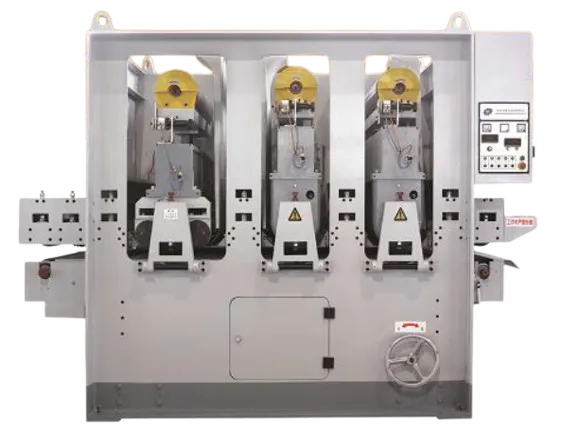

Thisindustrial plywood sanding machine features a three-head configuration that allows multiple sanding processes to be completed in a single pass. Typically, the first head is used for rough calibration, the second for fine sanding, and the third for polishing, ensuring optimal surface quality.
Key technical characteristics include:
- Sanding width: 40–1300mm
- Sanding thickness: 3–80mm (customizable)
- Abrasive belt speed: up to 25m/s
- Feed speed: adjustable for different production needs
- High-power motors ensuring stable performance
- Heavy-duty frame for vibration-free operation
Thewide belt sanding machine design ensures uniform sanding across large panels, making it ideal for mass production environments.
2. Product Features & Advantages
High Efficiency & Multi-Function
Thethree heads sanding machine allows rough sanding, fine sanding, and polishing in one pass, significantly improving productivity.
Heavy-Duty Structure
Built with a reinforced steel frame, this heavy duty sanding machine ensures durability, stability, and long service life, even under continuous operation.
Precision Sanding Performance
Large-diameter rollers and dynamic balancing technology ensure high precision and uniform thickness, delivering superior surface quality.
Intelligent Control System
Equipped with advanced electrical components and user-friendly controls, enabling easy operation and reduced maintenance.
Wide Application Compatibility
Suitable for various materials including:
- Plywood
- MDF
- Particle board
- Veneer panels
Cost Efficiency
The automated plywood sanding machine reduces manual labor and increases production output, making it ideal for large-scale factories.
3. Applications & Use Cases
Themultifunction plywood sanding machine is widely used in:
Plywood Manufacturing Plants
Ideal for sanding and polishing plywood panels after hot pressing and trimming.
Furniture Production
Ensures smooth surfaces for cabinets, wardrobes, and panel furniture.
Wood Panel Processing Industry
Applicable for MDF, particleboard, and laminated boards surface finishing.
Flooring & Decorative Panels
Used for precise sanding of flooring boards and decorative wood panels.
Automated Production Lines
Can be integrated into a plywood production line sanding system for continuous operation and high-capacity output.
4. Technical Parameters
| Sanding width(Max) | 40-1300mm | Motor for Feed | 7.5kW |
| Sanding thickness | 2.5~110mm | Motor for Lifting | 0.75kW |
| Sanding length | >780mm | Motor for Brush | 0.75kW |
| Abrasive belt speed | 20, 24m/s | Feed speed | 20-50, 50-80m/min |
| Abrasive belt dimension | 1330*2620mm | Operating pressure | 0.6-0.8MPa |
| Power Supply | 380V 50Hz | Capacity of suction extraction | 7900m3/h |
| Total capacity of motors | 79.5kW | Dimension(L*W*H) | 3140*2770*2440mm |
| Motor for Sanding Head | 30kW, 22kW, 18.5kW | Net Weight | 9800kg |
5. Conclusion
TheHeavy-Duty Three-Heads Multifunction Plywood Sanding Machine is an essential piece of equipment for modern woodworking factories. With its high efficiency, precision sanding capability, and durable structure, it significantly enhances production quality and reduces operational costs.
Whether used as a standalone industrial sanding machine or integrated into a full plywood production line, this machine provides a reliable and cost-effective solution for high-quality surface finishing.
