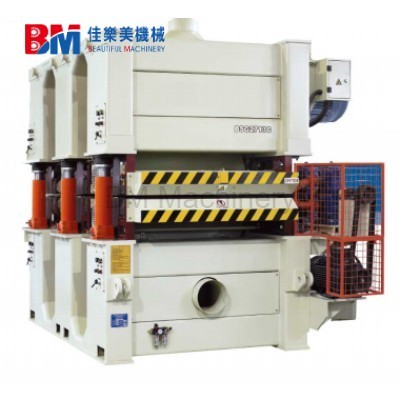

Heavy-Duty Four-Heads & Side Plywood Sanding Machine
This heavy duty plywood sander is widely used in modern plywood factories, offering high efficiency, stability, and consistent sanding quality for various wood-based panels.
1. Product Description
Theheavy-duty four heads plywood sanding machine adopts a robust structure and advanced sanding system, making it an ideal industrial sanding machine for continuous operation.
- Four sanding heads design: enables high-efficiency multi-stage sanding for superior surface finishing
- Side sanding unit: ensures precise edge trimming and polishing
- Wide belt sanding machine system: guarantees uniform sanding across large panels
- Automatic control system: improves operational accuracy and reduces labor costs
- High-precision calibration: delivers consistent thickness for plywood panels
Thisautomatic plywood sanding machine is engineered for durability and long service life, making it highly suitable for heavy-duty industrial applications.
2. Product Features & Advantages
Theheavy duty sanding machine offers multiple advantages for plywood manufacturers:
High Efficiency
With four sanding heads working simultaneously, this four heads sanding machine significantly improves productivity.
Superior Surface Quality
The advanced plywood surface sanding machine ensures smooth and uniform finishes, reducing the need for rework.
Integrated Side Sanding
The built-in side sanding machine enables edge sanding and trimming in one process, saving time and cost.
Stable & Durable Structure
Designed as a heavy duty plywood sander, it features a strong frame and high-quality components for long-term use.
Precision & Automation
Theautomatic sanding machine system ensures consistent thickness and accuracy, ideal for high-end plywood production.
3. Applications & Use Cases
Theindustrial plywood sanding machine is widely used in:
Plywood Manufacturing Plants
Perfect for large-scale sanding and calibration of plywood sheets.
Wood Panel Processing Industry
Suitable for MDF, veneer boards, and other wood-based panels.
Construction Material Production
Used in producing high-quality boards for furniture and construction.
Furniture Manufacturing
Ensures smooth surfaces for premium furniture panels.
Automated Production Lines
Can be integrated into automatic plywood sanding production line equipment for continuous operation.
4. Technical Parameters
| Sanding width(Max) | 1300mm | Motor for Lifting | 0.75kW |
| Sanding thickness | 5~150mm | Motor for Brush | 0.75kW*2 |
| Sanding length | >850mm | Feed speed | 10-30m/min |
| Abrasive belt speed(1#) | 25m/s | Power Supply | 380V 50Hz |
| Abrasive belt speed(1#) | 18.5m/s | Operating pressure | 0.6-0.8MPa |
| Abrasive belt dimension | 1350*2800mm | Capacity of suction extraction | 32000m3/h |
| Total capacity of motors | 284.25kW | Dimension(L*W*H) | 3920*3200*3050mm |
| Motor for Sanding Head | 75kW*2 55kW*2 | Net Weight | 23000kg |
| Motor for Feed | 22kW |
5. Conclusion
TheHeavy-Duty Four-Heads & Side Plywood Sanding Machine is an advanced industrial wood sanding equipment that combines efficiency, precision, and durability. With its four heads sanding machine system and integrated side sanding machine, it provides a complete solution for modern plywood production.
It is the ideal choice for manufacturers seeking a high efficiency industrial plywood sanding solution with superior performance and long-term reliability.
