Heavy-Duty Double Side Plywood Sanding Machine
Heavy-Duty Double Side Plywood Sanding Machine
The Heavy-Duty Double Side Plywood Sanding Machine is an advanced industrial woodworking solution designed for high-precision sanding and thickness calibration of plywood, MDF, particle board, and other wood-based panels. By sanding both sides simultaneously, the machine significantly improves productivity, ensures uniform thickness, and delivers superior surface finishing.
This machine is widely used in modern plywood production lines, offering stable performance, high efficiency, and consistent quality output. Double-side sanding technology enables accurate thickness control and reduces manual labor, making it an essential piece of equipment for panel manufacturing plants.
This machine is widely used in modern plywood production lines, offering stable performance, high efficiency, and consistent quality output. Double-side sanding technology enables accurate thickness control and reduces manual labor, making it an essential piece of equipment for panel manufacturing plants.
Quantity:
Heavy-Duty Double Side Plywood Sanding Machine
1. Product Detailed Description

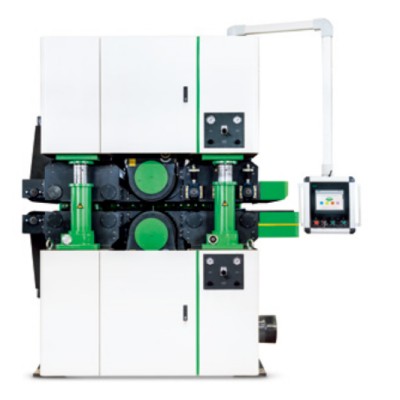

The Heavy-Duty Double Side Plywood Sanding Machine adopts a double-sided wide belt sanding structure, integrating calibration sanding and fine polishing in one process. It is engineered with heavy-duty frames and high-power motors to handle continuous industrial workloads.
The machine typically consists of:
- Upper and lower sanding units (double-sided operation)
- Feeding conveyor system with variable speed control
- Precision thickness adjustment system
- Dust collection interface for clean production
- PLC or control panel for easy operation
By processing both surfaces at the same time, the machine ensures:
- Balanced thickness
- Improved flatness
- Reduced sanding passes
- Higher throughput
This makes it a core machine in plywood finishing lines after hot pressing.
2. Product Features & Advantages
2.1 High-Rigidity Mineral Casting Structure
The body adopts an integral mineral casting structure, which provides excellent rigidity and significantly improves the overall working stability of the machine, ensuring reliable performance during long-term and heavy-duty operation.
2.2 400mm Large-Diameter Sanding Roller
The diameter of the sanding roller is increased to 400mm and processed with special technology, which effectively extends the service life of the abrasive belt and ensures smoother, more stable sanding performance.
2.3 Strong Sanding Force for Wide Panels
The machine maintains a large and consistent sanding force even when processing workpieces at maximum width, ensuring uniform sanding quality and high efficiency.
2.4 Variable Frequency Feeding System
The feeding system adopts frequency conversion speed regulation, offering a wide speed adjustment range, making it suitable for sanding different types of boards with varying process requirements.
2.5 Industrial Touch Control Terminal
The industrial-grade touch operating terminal simplifies the sanding process with a clear and user-friendly interface, improving operational convenience and efficiency.
2.6 Siemens PLC Centralized Control System
The Siemens PLC centralized control system delivers sensitive and reliable performance, and supports communication with upper-level computer systems for enhanced automation and production management.
2.7 Intelligent Self-Diagnosis Function
The self-diagnosis function can quickly detect and display fault locations, enabling faster maintenance, reducing downtime, and improving overall production efficiency.

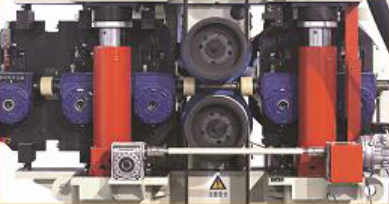

2.8 High-Precision Lifting System
The lifting system is driven by a worm wheel and worm mechanism, combined with a high-precision ball screw to ensure accurate lifting of the upper body, thereby improving sanding precision and consistency.
3. Main Applications & Use Scenarios
3.1 Plywood Manufacturing Plants
- Thickness calibration after hot pressing
- Surface finishing before lamination or coating
3.2 Furniture Production Factories
- Smooth surface preparation for furniture panels
- Improves coating and painting quality
3.3 Decorative Board Production
- Used for laminated boards and engineered panels
- Ensures high surface flatness and aesthetics
3.4 Construction Material Processing
- Processing boards used in construction and interior design
- Ensures dimensional consistency
3.5 Automated Production Lines
- Integrated into plywood production lines
- Works with loaders, stackers, and conveyors
4. Technical Parameter
| Sanding width(Max) | 1300mm | Motor for Lifting | 0.75kW |
| Sanding thickness | 3~150mm | Motor for Brush | 0.37kW*2 |
| Sanding length | >500mm | Feed speed | 10-30m/min |
| Abrasive belt speed | 25m/s | Power Supply | 380V 50Hz |
| Abrasive belt dimension | 1350*2800mm | Operating pressure | 0.6-0.8MPa |
| Total capacity of motors | 162.49kW | Capacity of suction extraction | 24000m3/h |
| Motor for Sanding Head | 75kW*2 | Dimension(L*W*H) | 2100*3100*3050mm |
| Motor for Feed | 11kW | Net Weight | 10000kg |

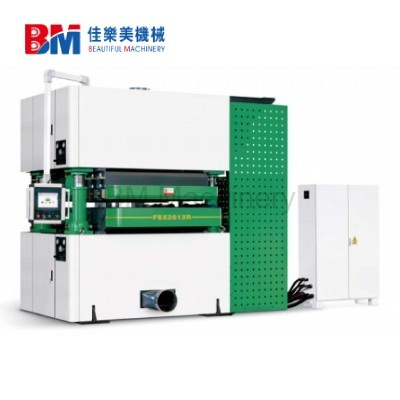

| Model | FSX2613R |
| Processing width | 40~1300mm |
| Processing thickness | 3~120mm |
| Processing length | ≥850mm |
| Speed of sanding belt | 24m/s |
| Speed of feeding | 5~40m/min |
| Size of sanding belt | 1350*2850mm |
| Main motor power | 2*75kW |
| Working air pressure | 0.55MPa |
| Speed of suction | 25~30m/s |
| Volume of suction | 25000m3/h |
| Compressed air consumption | 0.15m3/min |
| Overall dimension | 2400*3200*3200mm |
| Net weight | 14500kg |
