Cooling Rack

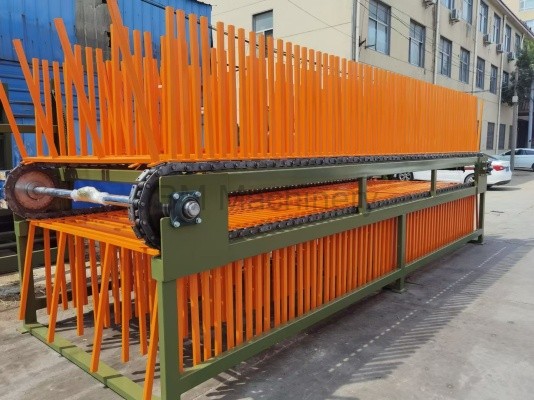

Cooling Rack-1
The Cooling Rack is an essential auxiliary equipment in plywood and wood panel production lines, designed to cool down hot-pressed panels efficiently. After the hot pressing process, plywood panels retain high temperatures and internal stress. The cooling rack ensures proper heat dissipation, stabilizes panel structure, and improves overall product quality. It is widely used in automated plywood production lines to enhance workflow continuity and reduce deformation risks.
Quantity:
Cooling Rack
1. Detailed Product Description
The Cooling Rack is engineered with a robust steel structure and optimized airflow design, enabling rapid and uniform cooling of plywood, MDF, veneer panels, and other wood-based boards. It is typically integrated after the hot press machine and can be customized in size, layers, and loading capacity based on production requirements.
The system may include:
- Multi-layer rack structure for high-capacity storage
- Natural cooling or forced-air cooling options
- Chain conveyor or manual loading/unloading systems
- Heat-resistant support frames to maintain panel flatness
This equipment plays a crucial role in preventing warping, cracking, or bonding issues caused by improper cooling.
2. Features & Advantages
- High Cooling Efficiency: Optimized rack spacing and airflow design ensure fast and even heat dissipation, reducing cooling time significantly.
- Strong Structural Stability: Constructed with high-quality steel, the rack offers excellent load-bearing capacity and long-term durability under continuous industrial use.
- Customizable Design: Available in different sizes, layers, and configurations to meet various production line layouts and capacity requirements.
- Improved Product Quality: Effectively reduces internal stress in panels, preventing deformation, cracks, and delamination.
- Easy Integration: Can be seamlessly connected with hot press lines, conveyors, and stacking systems for automated production.
- Low Maintenance: Simple structure with minimal moving parts ensures easy maintenance and low operational cost.
3. Main Applications & Scenarios
Applications
- Plywood production lines
- MDF and particle board manufacturing
- Veneer processing plants
- Laminated board production
Application Scenarios
- Post-hot-press cooling section in automated production lines
- Panel conditioning before trimming, sanding, or stacking
- Industrial wood board manufacturing facilities
5.5M Plywood cooling rack
4. Technical Parameters
| Item | Specification |
|---|---|
| Brand | BM |
| Drying Rack Size | L 5.5 m × W 2 m × H 2.4 m |
| Drying Rack Quantity | 1 set |
| Conveyor Size | Height 1.3 m × Length 1.8 m × Width 2 m |
| Conveyor Quantity | 1 set |
| Lifts Size | 1220 × 2300 mm |
| Lifts Quantity | 1 set |
| Clapper Rack | 1 set |
| Total Weight | 6 tons |
