4FT Fully Automatic Putty Spreading Line
4FT Fully Automatic Putty Spreading Line
The 4FT Fully Automatic Putty Spreading Line is an advanced surface treatment solution designed for plywood and wood-based panel production. It automatically applies putty to fill surface defects such as holes, cracks, and depressions, ensuring a smooth and uniform panel surface before sanding, laminating, or finishing.
This production line integrates conveying, putty feeding, coating, leveling, and stacking processes into a continuous automated workflow, significantly improving efficiency while reducing labor costs. It is widely used in modern plywood factories aiming for high-quality panel finishing and mass production.
This production line integrates conveying, putty feeding, coating, leveling, and stacking processes into a continuous automated workflow, significantly improving efficiency while reducing labor costs. It is widely used in modern plywood factories aiming for high-quality panel finishing and mass production.
Quantity:
4FT Fully Automatic Putty Spreading Line
1. Product Detailed Description

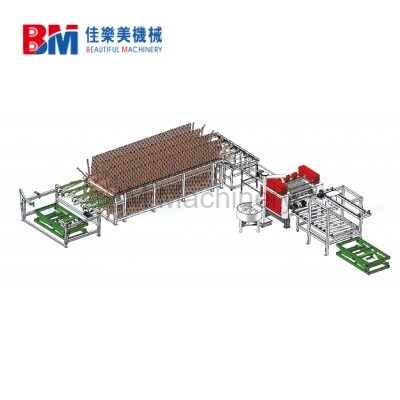

The 4FT Fully Automatic Putty Spreading Line is a complete production system composed of multiple functional units:
1.1 Feeding & Conveying System
- Automatic roller conveyor ensures smooth and stable panel transportation
- Maintains alignment for accurate putty application
1.2 Putty Mixing & Supply System
- Automatic mixing tank for consistent putty preparation
- Continuous feeding system ensures stable coating supply
1.3 Putty Spreading Unit
- High-precision spreading mechanism for uniform coating
- Adjustable thickness control for different panel requirements
1.4 Surface Leveling System
- Scraping and smoothing structure ensures even distribution
- Eliminates surface defects efficiently
1.5 Drying / Cooling Section (Optional)
- Natural or forced cooling/drying system
- Improves production continuity
1.6 Automatic Stacking System
- Intelligent stacking with lifting platform
- Ensures neat and damage-free panel stacking
2. Product Features & Advantages
2.1 Fully Automatic Operation
- Integrated production line reduces manual intervention
- Improves efficiency and consistency
2.2 High Efficiency Production
- Continuous processing significantly increases output
- Suitable for mass production lines
2.3 Uniform Putty Application
- Precision coating ensures even surface quality
- Reduces sanding workload
2.4 Labor Cost Reduction
- Automation replaces manual putty filling
- Lowers labor intensity and operational cost
2.5 Adjustable Parameters
- Putty thickness, speed, and pressure can be customized
- Flexible for different panel specifications
2.6 Stable and Reliable Structure
- Heavy-duty frame ensures long-term operation
- Low maintenance and high durability
2.7 Improved Product Quality
- Eliminates holes, cracks, and uneven surfaces
- Enhances final panel appearance and value
3. Main Applications
3.1 Plywood Manufacturing
- Surface repair before sanding and laminating
- Essential for high-grade plywood production
3.2 Furniture Board Processing
- MDF, particle board, and blockboard finishing
3.3 Construction Panels
- Film-faced plywood and building templates
3.4 Decorative Panels
- Panels for melamine lamination and coating
3.5 Export-Grade Panel Production
- Ensures surface quality meets international standards
4. Technical Parameters
| Equipment | Qty | Key Specifications | Motor Power / Details |
|---|---|---|---|
| Side Suction Plate Feeder | 1 | Size: 2500×2200×1900mm; Length: 2.3m; Diameter: 30 slideway | Transmission motor: 1.5kw; Vortex fan: 2.2kw |
| 4FT Correction Table | 1 | Size: 3100×1390×1065mm | Motor power: 1.5kw |
| Main Frame | - | Square tube: 100×50×3mm; 4×8ft / 4×10ft adjustable | - |
| 4FT Putty Scraper | 1 | Scraper thickness: 7–30mm; Speed: 8 sheets/min; Size: 1520×2000×1500mm; Weight: ~1200kg | Stirring motor: 2.2kw; Recovery motor: 1.5kw; Lifting motor: 2.5T-12 lifter; Main motor: 7.5kw + JZQ250 reducer |
| Reversing Conveyor | 1 | Height: 1200mm; Knife wheel roller: 10 pcs; 4×8ft / 4×10ft adjustable | - |
| Mixer | 1 | Cylinder diameter: 1.2m | Motor power: 7.5kw |
| Feeder & Recycle Machine | 1 | Diameter: 140mm; Length: 2700mm | Motor power: 2.2kw |
| Industrial Fans | 8 | Size: 1200×1200mm | Motor power: 0.75kw |
| Drying Rack | 1 set | Length: 12m; Drying boards: 120 pcs | Motor: 1.5kw + 2-stage reduction |
| Board Collector | 1 set | Height: 1350–1400mm; Pallet: 1250×3100mm; 4×8ft / 4×10ft adjustable | Motor: 1.5kw; SC50×150 cylinder; Grass belt: 3100×100mm |
| Lifting Platform + Conveyor Roller | 2 | Stroke: 1600mm; Tube: 100×50×4mm; Rollers: 5; Load: 3000kg; Size: 1200×2800mm | Lifting motor: 3kw; Roller motor: 1.5kw |
| External Conveyor Roller | 4 | 5 driven rollers; 1 main roller; 10 auxiliary rollers | Motor power: 1.5kw |
