Manual Putty Spreading Line
Manual Putty Spreading Line
The Manual Putty Spreading Line is a semi-manual production system designed for repairing and smoothing plywood surfaces by applying putty to fill defects such as holes, cracks, and gaps. It plays a critical role in improving panel surface quality before sanding, laminating, or coating processes.
Compared with fully automatic systems, the manual line offers flexibility, lower investment cost, and easy operation, making it ideal for small to medium-scale plywood manufacturers or factories requiring adaptable production workflows. The process ensures a smooth and uniform surface, enhancing the final product quality and market competitiveness.
Compared with fully automatic systems, the manual line offers flexibility, lower investment cost, and easy operation, making it ideal for small to medium-scale plywood manufacturers or factories requiring adaptable production workflows. The process ensures a smooth and uniform surface, enhancing the final product quality and market competitiveness.
Quantity:
Manual Putty Spreading Line
1. Product Detailed Description
The Manual Putty Spreading Line typically consists of several functional units working together in sequence:
1.1 Feeding Section
- Manual or semi-automatic panel feeding
- Aligns plywood sheets before processing
- Ensures smooth entry into the production line
1.2 Calibration / Repair Table
- Workers inspect surface defects
- Manual putty application using tools or assisted spreading device
- Ensures accurate filling of holes, knots, and veneer gaps
1.3 Putty Spreading Machine (Core Unit)
- Applies putty evenly across the board surface
- Adjustable thickness control
- Ensures consistent coating quality
1.4 Conveyor & Transition System
- Roller or belt conveyors transport panels
- Maintains stable movement and alignment
- Reduces labor intensity
1.5 Stacking Section
- Manual or semi-automatic stacking
- Organized collection of finished panels
- Ready for sanding or further processing
2. Features & Advantages
2.1 Cost-Effective Investment
- Lower cost compared to automatic putty lines
- Suitable for startups and medium factories
2.2 Flexible Operation
- Manual control allows adaptation to different panel sizes and defect conditions
- Ideal for customized or varied production
2.3 Improved Surface Quality
- Efficiently fills defects (holes, cracks, wormholes)
- Produces smooth and even surfaces for high-grade plywood
2.4 Easy Operation & Maintenance
- Simple structure with fewer automated components
- Easy to maintain and operate
2.5 Labor Optimization
- Reduces heavy manual workload compared to traditional hand application
- Improves efficiency while maintaining human precision
2.6 Stable Performance
- Durable mechanical structure
- Reliable for continuous industrial use
3. Applications & Use Scenarios
3.1 Main Applications
- Plywood surface repair
- Veneer defect filling
- Board surface leveling before sanding
3.2 Industry Use
- Plywood manufacturing plants
- Furniture board production
- Construction formwork panel production
- Decorative panel processing
3.3 Application Scenarios
- Pre-sanding preparation
- Pre-lamination treatment (melamine, veneer, film)
- Quality improvement for export-grade plywood
4. Technical Parameter

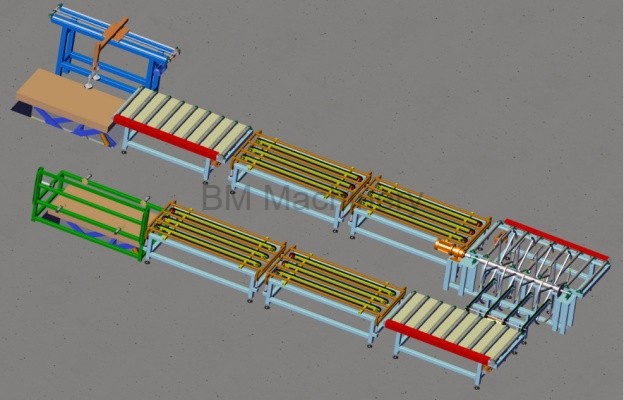

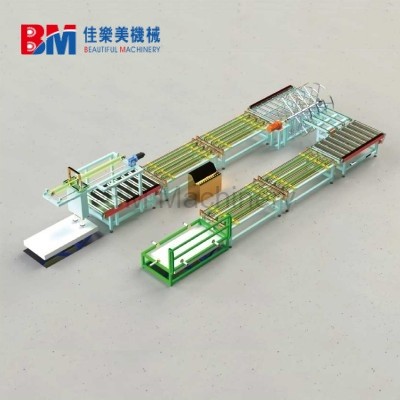

Equipment Configuration
| No. | Equipment Name | Type | Quantity | Specifications |
|---|---|---|---|---|
| 1 | Pusher with suction cup | — | 1 unit | Frequency converter / PLC control |
| 2 | 3-meter roller table | Roller type | 2 units | 1.5KW motor / 9 φ108mm×5mm rollers / frequency converter |
| 3 | 3-meter conveyor line | Belt type | 4 units | 1.5KW motor / 4 belts / cylinder lifting |
| 4 | 3.5-meter roller table | Roller type | 1 unit | 1.5KW motor / 11 φ108mm×5mm rollers |
| 5 | Tilting machine (6-tooth) | — | 1 unit | Pneumatic brake disc / 1.5KW tilting motor |
| 6 | 1.5-meter conveyor belt | Belt type | 1 unit | 4 φ100mm×4mm belts / 1.5KW motor / frequency converter |
| 7 | Plate collecting machine | 4-sided collecting | 1 unit | 6 cylinders / 1.5KW motor / φ100mm rubber rollers |
| 8 | Lifting platform | — | 2 units | 3 tons / 12# channel steel / 30mm thick plate / 3KW motor |
Main Performance Specifications
| Item | Specification |
|---|---|
| Maximum Working Width | 4×8FT |
| Working Thickness Range | 5mm and above |
| Feed Speed | 0–30 m/min (depending on worker) |
| Total Installed Power | 22.7KW |
| Compressed Air | 0.6–0.8 MPa |
| Air Consumption | 0.5 m³/min |
| External Dimensions (L×W×H) | 16m × 5.5m (Completed equipment dimensions) |
