Roller-Type Veneer Dryer
Roller-Type Veneer Dryer
The Roller-Type Veneer Dryer is a high-efficiency continuous drying system designed for plywood and wood-based panel production. It uses advanced hot air circulation and roller transmission technology to rapidly reduce veneer moisture content while maintaining flatness and structural integrity.
This machine is widely used in modern plywood manufacturing lines to ensure consistent drying quality, improve bonding performance, and enhance overall production efficiency. By precisely controlling temperature, humidity, and airflow, the dryer produces uniform, high-quality veneer sheets suitable for further processing.
This machine is widely used in modern plywood manufacturing lines to ensure consistent drying quality, improve bonding performance, and enhance overall production efficiency. By precisely controlling temperature, humidity, and airflow, the dryer produces uniform, high-quality veneer sheets suitable for further processing.
Quantity:
Roller-Type Veneer Dryer
1. Product Detailed Description
The Roller-Type Veneer Dryer operates through a continuous conveyor system of upper and lower rollers, which transport veneer sheets through heating and cooling zones. Hot air is evenly distributed across both sides of the veneer, ensuring rapid and uniform moisture removal.
Working Principle
- Veneer enters the preheating section
- High-temperature air (typically 140–200°C) is applied via circulation fans
- Rollers press and convey veneer steadily through drying chambers
- Cooling section stabilizes the veneer before discharge
This continuous drying method significantly improves productivity compared to traditional batch drying.
Structural Components
- Roller conveyor system (steel tube rollers)
- Heating chamber (hot air / biomass / steam / thermal oil)
- Air circulation and exhaust system
- Cooling section
- Automatic control system (PLC + touchscreen optional)
- Feeding and discharging conveyors
2. Product Features & Advantages
2.1 High Drying Efficiency
- Continuous production line design
- Fast moisture reduction from 60–80% to 8–14%
- Short drying cycle (minutes instead of hours)
2.2 Uniform Drying Quality
- Even airflow distribution
- Precise temperature and humidity control
- Prevents defects such as warping, cracking, or uneven moisture
2.3 Energy Saving & Low Cost
- High thermal efficiency with low heat loss
- Optional waste heat recovery system
- Biomass fuel compatibility reduces operating cost
2.4 Continuous & Automated Operation
- PLC automation with real-time monitoring
- Adjustable speed and temperature
- Reduced labor intensity
2.5 Strong Adaptability
- Suitable for different wood species (eucalyptus, birch, pine, etc.)
- Handles veneer thickness from thin decorative sheets to thick core veneers
2.6 Stable Performance & Easy Maintenance
- Durable steel structure
- Modular design for easy installation
- Low maintenance requirements

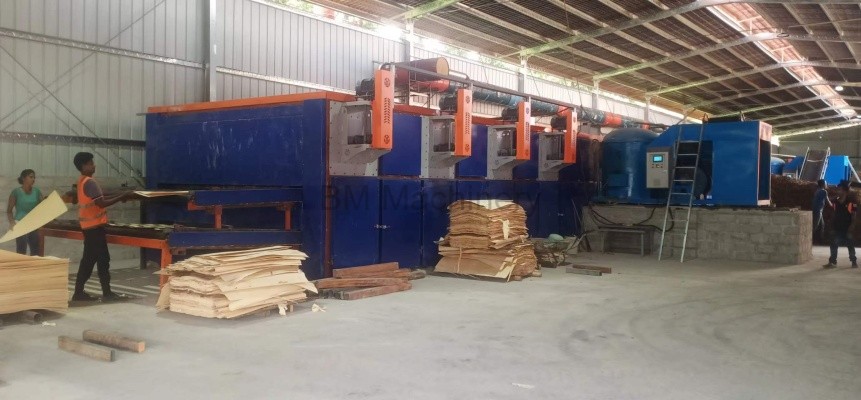

2-layers Roller dryer
3. Applications & Use Scenarios
3.1 Plywood Manufacturing Plants
- Core veneer drying before gluing
- Ensures proper moisture for bonding and pressing
3.2 LVL (Laminated Veneer Lumber) Production
- Uniform drying improves structural strength
3.3 Furniture & Decorative Veneer Industry
- Maintains veneer smoothness and appearance
- Prevents deformation during finishing
3.4 Wood Panel Industry
- Used in MDF, particle board, and engineered wood production
3.5 Large-Scale Industrial Production Lines
- Continuous drying for high-output factories
- Ideal for automated plywood plants

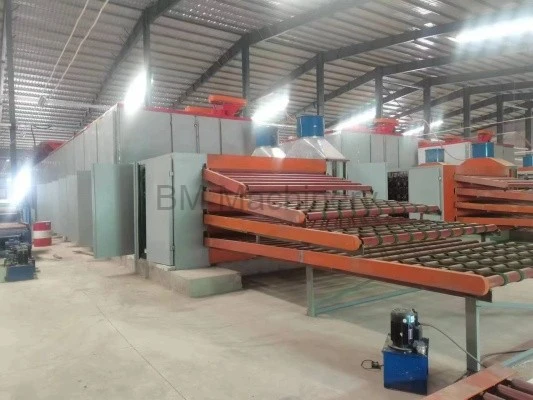

4 layers Roller dryer
4. Technical Parameters
| Brand | BM |
| Number of layers | 2 layers |
| Working length: 56m | Feed opening width: 3m |
| Hot air zone length: 52m | Cold air zone length: 4m |
| Incoming board length: 2m | Discharge part length: 2m |
| Roller diameter: φ8 9mm | Roller thickness: 2.75mm |
| Roller length: 3m | Roller spacing: 75mm |
| Roller material: carbon steel | Number of rollers: 1265 |
| Number of hot air blowers | 20 units |
| Number of air coolers | 0.55KW*8 units |
| Main motor | 5.5KW*20 units |
| Transmission motor | 7.5KW*2 sets |
| Induced draft fan | 7.5KW*3 units |
| Moisture exhaust fan | 0.35kW*8 units |
| Total motor power | 154kw |
| In and out board speed | Adjustable |
| Transmission mode | Frequency conversion control roller chain |
| Heat source | Biomass burner |
| Biomass burner | 4 tons*3 units |
| Drying efficiency | 4-5m3/h per hour |
| Initial moisture content of veneer | 60% |
| Moisture content in veneer | 10%-+ |
| Main frame material | Laser cut hole bolt assembly frame |
| Door panel | high temperature resistant rock wool board composite board |
| Overall dimensions | 56m*5m*2.2m |
| Total weight | About 80 tons |
| Containers | 4 |
| Brand | BM |
| Working width | 3800mm |
| Heating section length | 28000mm |
| Cooling section length | 4500mm (including 500mm partition) |
| Veneer thickness | 1.7-4mm |
| Wood species and veneer size Rubber | 1300 X 840 mm |
| Moisture content | 50% fresh veneer dried to around 10% |
| Heat source steam | steam 4-4.5 tons |
| Drying Capacity | About 3.6-4.2 CBM/ h |
| Veneer conveying speed | (1-15m/min) (frequency conversion speed regulation) |
| Heater power | 11kw×14=154kw |
| Traction motor power | 11kw×44kw (frequency conversion) |
| Air cooler power | 3kw×2=6kw |
| Automatic feeder power | 16kw (quote does not include automatic feeder) |
| Total power | 224kw (including automatic feeding, electric cabinet power about 4kw) |
| Actual power consumption | About 189 degrees/ h(fans are fully turned on) |
| Weight | 95T |
| Number of cabinets | 4*40HQ |
