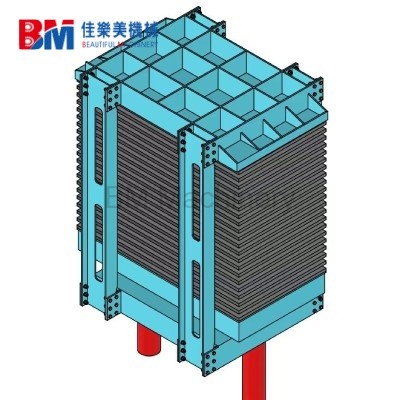

Vertical Infeed Hot-Platen Veneer Dryer

The Vertical Infeed Hot-Platen Veneer Dryer is an advanced drying solution designed for efficient moisture removal, flattening, and stabilization of wood veneer in plywood production lines. Combining vertical feeding structure with hot platen pressing technology, this machine ensures high-quality drying performance, uniform moisture control, and superior veneer flatness.

Compared with traditional drying systems, this equipment offers higher energy efficiency, compact footprint, and improved veneer quality, making it ideal for modern plywood and wood panel manufacturing plants.

Quantity:

Contact Now

1. Detailed Product Description

The Vertical Infeed Hot-Platen Veneer Dryer operates using a multi-layer hot platen pressing system, where veneers are fed vertically into the machine and dried through controlled heat and pressure cycles.

Working Principle

Veneers are loaded vertically into multiple layers
Hot platens apply heat and pressure simultaneously
Moisture is rapidly evaporated through engineered exhaust grooves
Controlled opening/closing cycles ensure consistent drying

This “breathing-type” drying process ensures:

Faster moisture removal
Reduced veneer deformation
Improved surface smoothness and bonding performance

Hot platen dryers are widely recognized for producing high-grade plywood veneer with excellent flatness and dimensional stability

2. Product Features & Advantages

2.1 High Drying Efficiency

Simultaneous heating and pressing accelerates moisture evaporation
Short drying cycle compared to traditional dryers
Suitable for thick and high-moisture veneers

2.2 Superior Veneer Flatness

Hot platen pressure ensures:
- Smooth surface
- Reduced warping and curling
Ideal for high-quality plywood production

2.3 Energy-Saving Design

Efficient heat transfer system reduces energy consumption
Lower drying cost per cubic meter
Optimized thermal circulation improves heat utilization

2.4 Compact Vertical Structure

Vertical feeding reduces floor space
Multi-layer design increases capacity per unit area
Suitable for factories with limited space

2.5 Intelligent Control System

PLC automatic control (optional Siemens system)
Adjustable temperature, pressure, and cycle time
Stable and user-friendly operation

2.6 Durable & Heavy-Duty Construction

High-strength steel frame
Reliable hydraulic system
Long service life with low maintenance

2.7 Uniform Drying Quality

Even heat distribution across all layers
Consistent moisture content
Improved downstream processing efficiency

3. Applications & Use Scenarios

3.1 Main Applications

Core veneer drying
Face veneer drying
Plywood production lines
Engineered wood manufacturing

3.2 Suitable Materials

Birch veneer
Eucalyptus veneer
Poplar veneer
Pine veneer
Hardwood and softwood veneers

3.3 Application Scenarios

Industry	Application
Plywood Factory	Core veneer drying & flattening
Furniture Manufacturing	High-quality panel production
Construction Materials	Formwork plywood
Wood Processing Plants	Continuous veneer drying

This machine is particularly suitable for:

Medium to large-scale plywood factories
Production lines requiring high flatness veneer
Regions with high moisture raw materials

4. Technical Parameters

Item	Specification
Brand	BM
Upper & Lower Beams	300 mm
Column	220 × 400 mm × 4 pcs, 18 mm steel plate
Center Support Height	280 mm
Heating Plate Size	1400 × 2600 × 42 mm
Heating Plate Material	Q235 (Double In & Double Out)
Chute Size	20 × 20 mm
Oil Cylinder	160 × 1200 mm × 2 pcs
Hydraulic Station Power	11 kW × 1
Total Weight	30 Tons
PLC	Mitsubishi (without program)
Touch Screen	Kunlun Tongtai, 7-inch
Switch	CHNT
Transformer	CHNT
Power Switch	Mingwei (Taiwan)
Relay	CHNT
Contactor	CHNT
Button	Kodak
