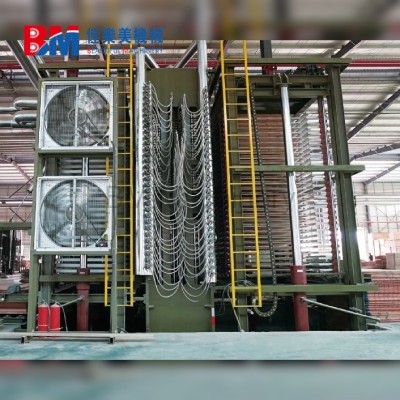

Multi-Daylight Plywood Hot Press (Side View)

The multi-daylight plywood hot press (side view) is a high-efficiency hydraulic hot press machine designed for large-scale wood panel production. This multi-layer hot press machine adopts a robust side structure, ensuring superior stability, pressure distribution, and long-term durability.

As an advanced plywood hot press machine, it is widely used in modern production lines for manufacturing plywood, laminated boards, and veneer panels. With its optimized structure and energy-saving design, this industrial plywood press machine significantly improves production efficiency while reducing operational costs.

Quantity:

Contact Now

1. Product Description

Themulti-daylight plywood hot press features a heavy-duty frame and precision-engineered components to guarantee consistent performance.

The side view structural design enhances machine rigidity and ensures uniform pressure across all layers
Equipped with a powerful hydraulic system for stable and high-pressure operation
Multi-layer daylight configuration increases production capacity per cycle
High-quality heating plates provide even temperature distribution
Intelligent control system enables precise adjustment of pressure, temperature, and pressing time

Thishydraulic plywood hot press with side structure design is ideal for continuous industrial production and delivers excellent bonding quality for various wood panels.

2. Features & Advantages

Thehigh efficiency multi-daylight plywood hot press machine offers multiple advantages:

High Efficiency & Productivity

The multi-layer design allows simultaneous pressing of multiple boards, greatly improving output compared to traditional single-layer machines.

Stable Structure & Durable Design

The reinforced frame and optimized side view plywood hot press structure ensure long-term stability, even under heavy-duty working conditions.

Energy Saving & Cost Effective

Advanced heating and hydraulic systems reduce energy consumption, making this an energy saving plywood hot press machine.

Precision Control

The automated control system ensures accurate temperature and pressure regulation, improving product consistency.

Wide Compatibility

Suitable for different board thicknesses and materials, making it a versatile wood panel hot press machine.

3. Applications & Use Cases

Thishot press machine for plywood and laminated boards is widely used in various industries:

Plywood Manufacturing Industry

Ideal for producing high-quality plywood with strong bonding strength

Furniture Production

Used for pressing laminated boards and furniture panels

Wood-Based Panel Industry

Suitable for MDF, particle board lamination, and veneer pressing

Construction Materials

Applied in producing structural boards and decorative panels

Packaging Industry

Used for manufacturing durable wooden packaging materials

Theheavy duty plywood hot press for industrial production ensures reliable performance in demanding environments.

4. Technical Parameters

Category	Item	Specification
Brand	Manufacturer	BM
Frame Structure	Upper Beam	1000 mm
	Lower Beam	900 mm
	Middle Beam	400 mm
	Frame Steel Plate Thickness	50 mm
	Vertical Plate Leg Width	420 mm × 4 pieces
	Processing	All planer finishing
Layer System	Layer Spacing	70 mm
Hot Press Plates	Plate Size	2700 mm × 1370 mm × 42 mm
	Material	Q355B
	Structure	Double input & double output
	Heating Performance	Uniform heat transfer, small surface temperature difference
	Quantity	36 pieces
	Plane Accuracy	Within 10 wires
Hydraulic System	Master Cylinder Model	320 mm × 2450 mm
	Number of Cylinders	4
	Rated Working Pressure	26 MPa
	Hydraulic Station	Pollution-free standard hydraulic station
	Pump Type	High-performance vane pump
	Oil Pump Origin	Imported
Heating System	Heating Method	Heat transfer oil
Motor System	Low Pressure Pump Motor	18 KW – 4
	Quantity	3 units
	High Voltage Motor	15 KW – 4
	Quantity	1 unit
Control System	Control Method	PLC automatic computer program control
	PLC Brand	Siemens
	Electrical Components	French Schneider
Power	Total Installed Capacity	63 KW – 4
Attached Machine	Main Machine	1 set
	Automatic Loading Machine	1 set (hanging cage type, suction plate feeding)
	Automatic Unloading Machine	1 set (hanging cage type, automatic palletizing)
	Board In/Out System	Fully automatic (supports single 4 × 8 feet)
	Lift Table	Loading & unloading plate lift table

5. Conclusion

Themulti-daylight plywood hot press (side view) is an essential piece of equipment for modern wood processing industries. Combining high efficiency, structural stability, and energy-saving performance, this industrial plywood press machine delivers excellent results for a wide range of applications.

Choosing this hydraulic hot press machine will enhance your production capacity, improve product quality, and reduce operational costs, making it an ideal solution for plywood manufacturers worldwide.
