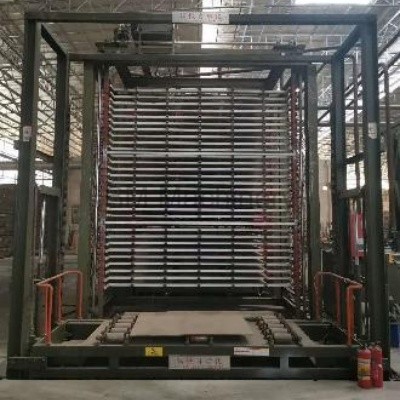

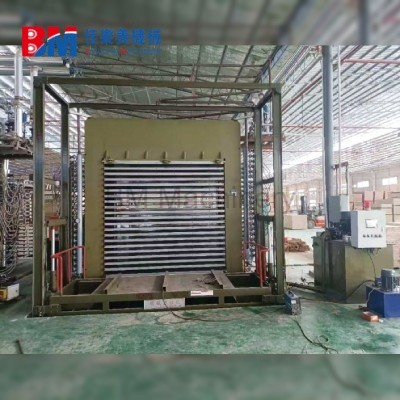

Multi-Daylight Plywood Hot Press(Manual Feeding with Vertical Lift Table)
Equipped with a hydraulic system, the multi daylight hot press machine ensures uniform pressure distribution and consistent bonding performance. The integrated vertical lift table hot press structure allows easier board loading and unloading, making it ideal for medium-scale plywood factories seeking cost-effective solutions.
1. Product Description
Themulti daylight plywood hot press machine with manual feeding is specifically engineered for pressing multiple layers of veneer into high-quality plywood panels.
Thishydraulic plywood hot press features a robust steel frame, high-pressure cylinders, and precision temperature control systems. The hot press with lift table enables operators to conveniently handle panels during the pressing cycle, reducing labor intensity and improving workflow efficiency.
Key structural components include:
- Heavy-duty frame for long-term durability
- Multi-layer daylight design for increased production capacity
- Advanced hydraulic system for stable pressure control
- Vertical lift table system for smooth material handling
Thisindustrial plywood hot press is suitable for continuous production environments and ensures reliable performance even under heavy workloads.
2. Features & Advantages
Themulti layer hot press machine offers several advantages that make it a preferred choice in plywood production:
High Efficiency
Themulti daylight hot press design allows multiple boards to be pressed simultaneously, significantly improving production output.
Stable Hydraulic System
Thehydraulic hot press machine for plywood factory ensures even pressure distribution, reducing defects and improving bonding strength.
User-Friendly Operation
Themanual feeding hot press with vertical lift table simplifies loading and unloading processes, minimizing operator fatigue.
Durable Structure
Manufactured with high-quality steel, this plywood pressing machine guarantees long service life and minimal maintenance.
Energy Saving
Optimized heating and pressure systems reduce energy consumption while maintaining high productivity.
3. Applications & Use Cases
Theplywood hot press machine is widely used across various wood processing industries.
Main Applications:
- Plywood production
- Blockboard and laminated board manufacturing
- Decorative panel pressing
- Furniture board production
Application Scenarios:
Thismulti daylight plywood hot press machine with manual feeding is ideal for:
- Medium and large-scale plywood factories
- Furniture manufacturing plants
- Wood panel processing lines
- Industrial board production workshops
Thevertical lift table hot press design is especially suitable for factories that require flexible operation and efficient material handling.
4. Technical Parameters
900T 25/24 hot press
| Parameter | Specification |
|---|---|
| Brand | BM |
| Equipment frame structure | Split assembly: Upper beam 1000mm, Lower beam 900mm, Middle beam 400mm, Removable frame |
| Thickness of frame steel plate | 35 mm |
| Width of vertical plate leg | 370 mm × 8 pieces |
| Surface processing | All finished by planer |
| Layer spacing | 90 mm |
| Size of hot pressing plate | 2700 × 1370 × 52 mm |
| Plate material | Q235, double in & out |
| Number of hot pressing plates | 25 |
| Main oil cylinder model | 260 × 2200 mm × 6 pcs + 160 × 2200 mm × 2 pcs |
| Oil cylinder origin | Wuxi |
| Cylinders rated working pressure | 26 MPa |
| Heating mode | Steam / oil |
| Hydraulic system | Pollution-free standard hydraulic station |
| Hydraulic components | Taiwan Jiugang hydraulic valve, 25MC plunger pump |
| Oil pump origin | Shanghai |
| Fast pump motor model | 18.5 kW × 1 set |
| High-voltage pump motor model | 4 kW × 1 set |
| Motor origin | Shandong |
| Other electrical appliances | Schneider |
| Control system | PLC automatic control, 6-section buck drain |
| Total installed capacity | 22.5 kW |
| Weight | 70 ton |
| Overall size | H6400 mm × W1500 mm × L3500 mm |
| Closing time | 23 seconds |
5. Conclusion
Themulti daylight plywood hot press with vertical lift table is a reliable, efficient, and cost-effective solution for modern plywood production.
Combiningmanual feeding flexibility,hydraulic stability, and multi-layer pressing efficiency, this industrial plywood hot press machine significantly enhances productivity while maintaining high-quality output.
It is an excellent choice for manufacturers looking to upgrade their plywood pressing machine and improve overall operational efficiency.
