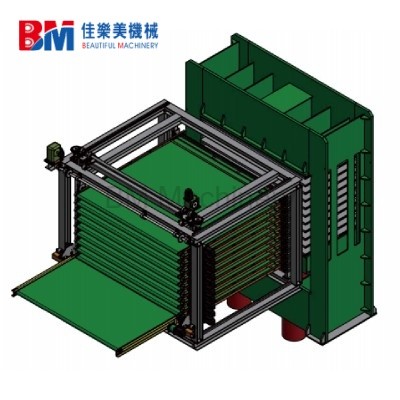

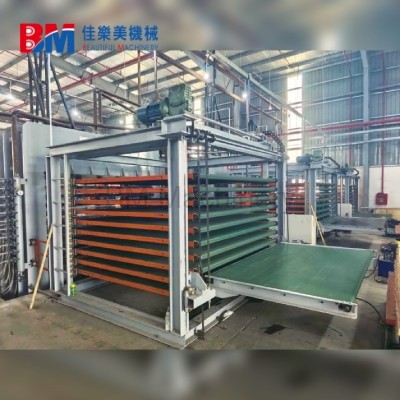

Impregnated Paper Belt Infeed Machine + Laminating Press

The Impregnated Paper Belt Infeed Machine + Laminating Press is a high-efficiency integrated solution designed for continuous lamination of melamine-impregnated paper onto wood-based panels such as MDF, particleboard, and plywood. This system combines precise belt feeding technology with advanced pressing mechanisms to ensure uniform bonding, high surface quality, and stable production performance.

Widely used in furniture manufacturing and decorative panel production, the machine significantly enhances productivity, reduces labor intensity, and ensures consistent laminating quality. Laminating presses are essential in bonding decorative materials like melamine paper or veneer onto substrates, improving both durability and appearance of panels.

Quantity:

Contact Now

1. Product Detailed Description

The machine consists of two main sections:

1.1 Belt Infeed System

Equipped with high-performance conveyor belts
Ensures stable and continuous feeding of impregnated paper
Maintains accurate alignment and positioning
Reduces manual handling and improves automation

The belt system often uses vacuum adsorption or friction-based transport to ensure precise paper positioning and smooth transfer.

1.2 Laminating Press Unit

High-pressure hydraulic or hot press system
Applies uniform pressure and temperature
Enables strong bonding between paper and substrate
Supports continuous or short-cycle pressing

In laminating processes, heat and pressure activate resin within impregnated paper (such as melamine), forming durable decorative surfaces.

1.3 Integrated Control System

PLC automatic control
Adjustable speed, temperature, and pressure
Real-time monitoring for stable production

2. Features and Advantages

2.1 High Efficiency Production

Continuous feeding + pressing integration
Reduced cycle time and increased output
Suitable for large-scale panel production

2.2 Excellent Laminating Quality

Uniform pressure distribution
Smooth, bubble-free surface
Strong adhesion and long-lasting finish

2.3 Advanced Automation

Automatic feeding, pressing, and conveying
Reduced labor cost
Easy operation via intelligent control system

2.4 Durable and Reliable Structure

Heavy-duty frame design
Wear-resistant conveyor belts
Long service life with low maintenance

2.5 Flexible Application

Compatible with various board sizes and thicknesses
Adjustable parameters for different materials

2.6 Energy Saving & Cost Efficient

Optimized heating system
Reduced material waste
Lower operational costs

3. Main Applications and Scenarios

3.1 Furniture Manufacturing

Decorative panel production
Wardrobes, cabinets, desks, and doors

3.2 Wood-Based Panel Industry

MDF / HDF lamination
Particleboard surface finishing
Plywood decorative coating

3.3 Interior Decoration Materials

Laminated flooring
Wall panels
Decorative boards

3.4 Industrial Laminates

Melamine decorative sheets
High-pressure laminate boards

Impregnated paper (melamine paper) is widely used to enhance durability, scratch resistance, and visual appeal in furniture and interior materials.

4. Technical Parameters

Item	Specification
Main Frame	150×150H steel
Layer Belt Frame	40×60 rectangular tube
Drive Roller / Driven Roller	Φ63×12 seamless tube
Servo Planetary Gear Reducer	PX130NO12SA
Main Frame Forward Servo Motor	3KW
Layer Belt Servo Motor	PX130-1.4KW × 10 layers = 14KW
Lifting Brake Motor	2.2KW
Lifting Belt Servo Motor	PX130-1.4KW
Layer Interval	Adjustable
Total Power	20.6KW
Total Weight	~4600kg
Dimensions	(L) 3720 × (W) 3000 × (H) 2850mm
