Energy-Saving Vertical Veneer Dryer

The Energy-Saving Vertical Veneer Dryer is an advanced wood drying solution designed for plywood and veneer production lines. Featuring a compact vertical structure, intelligent temperature control, and high-efficiency heat utilization, this machine significantly reduces energy consumption while ensuring uniform drying quality.

Compared with traditional roller or natural drying methods, this vertical veneer dryer offers lower operating costs, smaller footprint, and higher drying efficiency, making it ideal for modern plywood factories seeking sustainable and cost-effective production.

Quantity:

Contact Now

1. Product Detailed Description

The Energy-Saving Vertical Veneer Dryer adopts a vertical stacking and circulating drying system, where veneers are transported through multiple layers while hot air flows evenly across the material.

Working Principle:

Veneers are vertically loaded and continuously conveyed through the drying chamber. A built-in combustion system generates hot air, which circulates evenly to remove moisture efficiently.

Heating System:

Combines hot air convection and heat exchange technology to maximize thermal efficiency and reduce energy waste.

Automation System:

Equipped with PLC control, allowing automatic adjustment of temperature, speed, and moisture content.

Structure Design:

Vertical multi-layer structure greatly increases loading capacity and saves floor space.

2. Product Features & Advantages

2.1 Energy Saving & Low Cost

Advanced heat exchange system improves energy utilization
Up to 30–38% energy savings compared to traditional dryers
Can burn wood waste (branches, veneer scraps) as fuel

2.2 High Drying Efficiency

Continuous drying process increases productivity
Drying capacity up to 1.5 m³/h or higher
Shorter drying time due to higher temperature efficiency

2.3 Uniform Drying Quality

Even hot air distribution ensures consistent moisture removal
Prevents defects such as cracking, warping, and wrinkles

2.4 Space-Saving Design

Vertical structure reduces floor space by up to 1/3–2/3 compared to horizontal dryers
Ideal for factories with limited installation space

2.5 Labor Saving & Easy Operation

Requires only 2–3 operators
Fully automated feeding and discharging options

2.6 Environmentally Friendly

Uses biomass fuel (wood waste)
Reduces emissions and waste disposal issues

2.7 Customizable Configuration

Adjustable drying temperature and speed
Optional dust removal and environmental systems
Tailored machine size and capacity

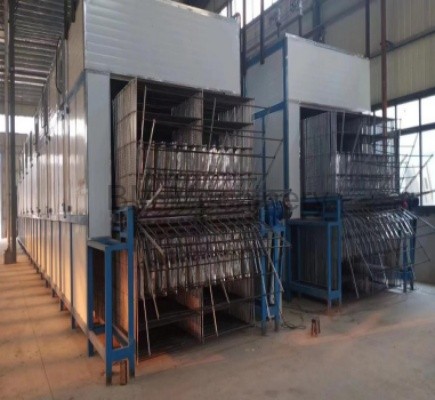

40M Vertical veneer dryer

3. Applications & Use Cases

3.1 Main Applications

Plywood production lines
Core veneer drying
Face veneer drying
Wood panel manufacturing

3.2 Applicable Materials

Hardwood veneer (birch, eucalyptus, oak)
Softwood veneer
Bamboo veneer

3.3 Industry Scenarios

Medium and large plywood factories
Veneer processing plants
Furniture manufacturing enterprises
Wood-based panel production lines

3.4 Special Use Scenarios

Rainy or humid climates (ensures stable drying)
Transition from natural drying to machine drying
Energy-saving upgrades for existing factories

4. Technical Parameters

Machine Size	L40 × W4.5 × H4 m
Total Length Composition	40 m total (34 m heating + 4 m cooling + 2 m head & tail)
Working Width	3.5 m
Veneer Thickness Range	0.8 – 3.6 mm
Veneer Size Capacity	1.27 × 0.66 m (4 pcs)
	1.27 × 0.88 m (3 pcs)
	1.27 × 1.27 m (2 pcs)
	1.27 × 2.6 m (Full board)
Single board initial moisture content	40% – 60%
Single board final moisture content	15%
Heating Method	Thermal Oil or Steam Boiler (Customer provides)
Drying Capacity	Approx. 100 – 120 CBM / 24 Hours
Operating Temperature	150 – 200°C
Total Power	67.96 KW
Hot Air Blower	3 KW × 17
Cooling Fan	3 KW × 2
Dehumidification Fan	0.37 KW × 8
Transmission Motor	4 KW × 2
Weight	Approx. 55 Tons
