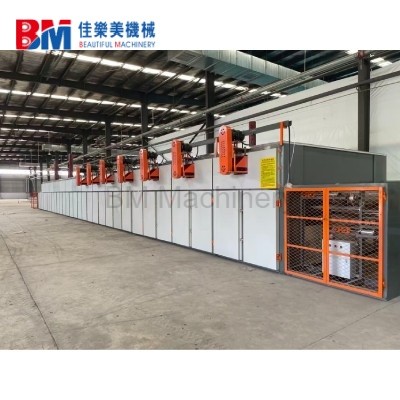

Double-Deck Stainless Steel Mesh-Belt Face Veneer Dryer
Double-Deck Stainless Steel Mesh-Belt Face Veneer Dryer
The Double-Deck Stainless Steel Mesh-Belt Face Veneer Dryer is a high-efficiency continuous drying solution designed specifically for thin face veneer in plywood production lines. Utilizing a dual-layer (double-deck) stainless steel mesh belt system, the machine ensures uniform drying, high throughput, and superior veneer quality.
With advanced hot air circulation, intelligent temperature control, and energy-saving design, this dryer delivers consistent moisture reduction from green veneer to optimal levels required for downstream processing such as gluing and pressing. It is widely used in modern plywood, furniture, and decorative veneer manufacturing industries.
With advanced hot air circulation, intelligent temperature control, and energy-saving design, this dryer delivers consistent moisture reduction from green veneer to optimal levels required for downstream processing such as gluing and pressing. It is widely used in modern plywood, furniture, and decorative veneer manufacturing industries.
Quantity:
Double-Deck Stainless Steel Mesh-Belt Face Veneer Dryer
1. Product Description
The Double-Deck Stainless Steel Mesh-Belt Veneer Dryer is a continuous drying system composed of:
- Feeding section
- Heating (drying) section
- Cooling section
- Discharge section
Fresh veneer sheets are automatically fed onto the stainless steel mesh belt and conveyed through multiple temperature-controlled zones. Hot air penetrates through the mesh belt, efficiently evaporating moisture from the veneer. Part of the exhaust heat is recycled, significantly improving energy utilization.
The double-deck structure increases drying capacity without increasing floor space, making it ideal for medium to large-scale veneer production lines.
2. Product Features & Advantages
2.1 High Efficiency Continuous Drying
- Continuous mesh belt operation enables uninterrupted production
- Double-deck design doubles capacity within limited plant space
- Adjustable speed for different veneer thickness and moisture levels
2.2 Superior Drying Quality
- Uniform hot air penetration ensures consistent moisture content
- Final veneer moisture typically reduced to 8–12%
- Prevents warping, cracking, and deformation
- Maintains flatness and smooth surface for bonding
2.3 Energy Saving & Heat Recycling
- Closed-loop drying system minimizes heat loss
- Waste heat recovery improves thermal efficiency
- Lower energy consumption compared to traditional dryers
2.4 Durable Stainless Steel Mesh Belt
- Made of high-grade stainless steel (e.g., 304)
- Corrosion-resistant, high temperature resistant
- Ensures clean, contamination-free veneer surface
- Excellent air permeability for uniform drying
2.5 Intelligent Control System
- PLC automatic control system
- Real-time temperature monitoring
- Adjustable drying parameters for different materials
- Reduced labor costs and easy operation
2.6 Stable Operation & Low Maintenance
- Simple structure, easy installation
- Low failure rate and long service life
- Minimal downtime with anti-jamming design
3. Applications & Use Scenarios
3.1 Main Applications
- Face veneer drying (0.2–1.5 mm thickness)
- Rotary-cut veneer drying
- Sliced veneer drying
- Decorative veneer processing
3.2 Industry Applications
- Plywood manufacturing plants
- Furniture production factories
- Engineered wood processing lines
- Decorative panel production
3.3 Typical Use Scenarios
- High-volume plywood production lines
- Automated veneer processing systems
- Export-oriented veneer manufacturing
- High-quality decorative veneer drying
The machine is especially suitable for thin, high-value veneer, where surface quality and uniform moisture are critical.
4. Technical Parameter
| Brand | BM |
| Working width | 2600mm |
| Working Layer | 2 Layer |
| Heating zone | 6 part ×3000mm=18000mm |
| Cooling zone | 1 part×2000mm=2000mm |
| Nose entry area | 5000mm |
| Tail skin area | 6000mm |
| Heating medium | Oven fire tube heating |
| Oven 2set | L8000mm×W2300mmX H700mm 2 burners |
| Total power | 50KW |
| Heating blower motor | 5.5KW×6SETS =33KW |
| Cooling fan motor | 3KW×1SET =3KW |
| Smoke fan motor | 4KW×2SET =8KW |
| Transfer motor | 3KW×2SET=6KW |
| Transmission speed | 1--30m/min |
| Drying temperature | 80℃-170℃ |
| Thickness of dried veneer | 0.2-1mm |
| Initial moisture content of veneer | 60% |
| Final moisture content of veneer | 10±2% |
| Drying capacity | 1-2.5㎡/H |
| Mesh belt material | Teflon mesh belt |
| Dimensions | Length 34m (upper skin 5m + body 23m + lower skin 6) * width 4.3m * height 2.3m |
| Weight | ~17000KG |
| Loading | 1*40HQ+20FT |
