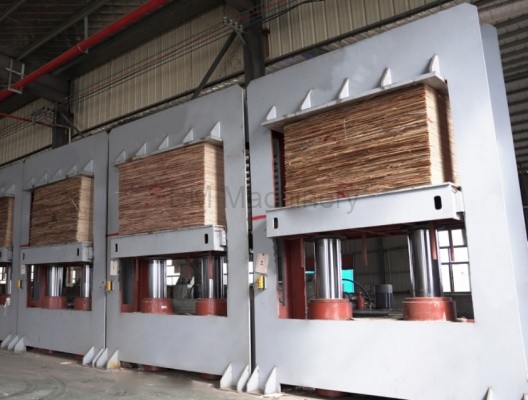

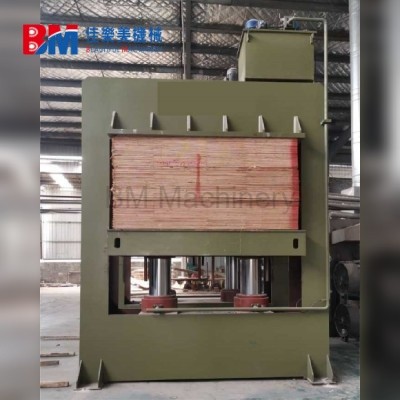

Bottom-Cylinder Cold Press

The Bottom-Cylinder Cold Press is a high-efficiency cold press machine designed for precise pressing of plywood, MDF, and other wood-based panels. Featuring a robust hydraulic system and advanced control technology, this woodworking press ensures uniform pressure, enhanced stability, and superior panel quality. The Bottom-Cylinder Cold Press for plywood is ideal for industrial factories, decorative panel production, and custom wood processing applications.

Quantity:

Contact Now

1. Product Description

OurBottom-Cylinder Cold Press Machine is equipped with heavy-duty cylinders and a reinforced frame to ensure long-term durability and consistent pressing performance. This plywood cold press is suitable for panels of various sizes and thicknesses. Optional automatic loading and unloading systems can be integrated to increase operational efficiency.

Key technical features include:

Adjustable hydraulic pressure for different panel types.
Uniform pressure distribution with the bottom-cylinder design.
Optional custom press sizes and configurations to meet production needs.
Energy-efficient hydraulic system for reduced operational costs.

2. Product Features and Advantages

High Precision & Stability: The bottom-cylinder design ensures even pressure distribution across the panel surface, minimizing warping or deformation.
Energy Efficient: The advanced hydraulic system reduces energy consumption while maintaining high productivity.
Durable Construction: The heavy-duty frame and cylinders ensure long-term reliability and minimal maintenance.
Customizable Options: The Bottom-Cylinder Cold Press Machine can be tailored with different press sizes, hydraulic pressures, and automation options for various industrial requirements.
High Production Efficiency: Designed for continuous operation in large-scale plywood and wood panel factories, maximizing throughput.

3. Main uses and application scenarios of the product

TheBottom-Cylinder Cold Press is widely used in the production of:

Plywood and laminated panels.
MDF, particleboard, and other composite wood products.
Decorative and furniture panels requiring precise pressing.

It is particularly suitable for:

Industrial plywood factories seeking high efficiency and quality.
Decorative panel manufacturers needing consistent pressing for aesthetic finishes.
Custom woodworking shops that require reliable cold press machines for different panel types.

4. Technical Parameters

500T Bottom-Cylinder Cold Press

Parameter	Specification
Brand	BM
Equipment frame structure	Split assembly: Upper beam 900mm, Lower beam 900mm, Middle beam 400mm
Thickness of frame steel plate	35 mm
Width of vertical plate leg	370 mm × 4 pcs
Open distance	1800 mm
Main oil cylinder model	360 × 1050 mm × 2 pcs
Cylinder origin	Wuxi
Cylinders rated working pressure	26 MPa
Hydraulic system	Pollution-free standard hydraulic station
Oil pump origin	Shanghai
Pump quantity	2
Number of oil pump motors	2
Oil pump motor model	7.5 kW + 5.5 kW
Control system control mode	Fully automatic
Other electrical components	Schneider, France
Total installed capacity	7.5 kW + 5.5 kW
Weight	~12 ton

5. Summary

In conclusion, the Bottom-Cylinder Cold Press is a versatile, energy-efficient, and precise cold press machine for modern wood panel production. Its combination of durability, operational flexibility, and high productivity makes it an essential equipment choice for medium to large-scale plywood factories, decorative panel manufacturers, and custom woodworking industries. With customizable options and optional automation, this woodworking press is tailored to meet the demands of modern industrial production.
