Windmill-Type Panel Turning Machine
As an advanced industrial panel flipping machine, it significantly reduces manual handling, improves production efficiency, and ensures safe operation. This automatic panel turning equipment is widely used in sanding lines, laminating lines, and furniture manufacturing processes.
1. Product Description

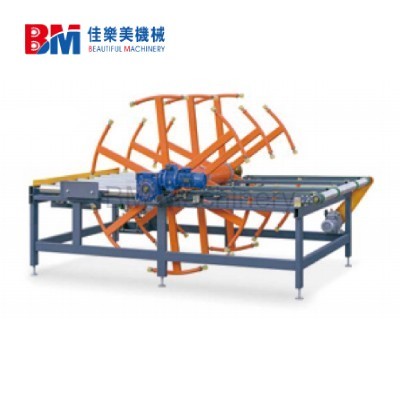

The windmill type panel turning machine adopts a multi-arm rotating structure, similar to a windmill mechanism, to achieve fast and stable flipping of panels. Compared with traditional panel turnover machines, it provides stronger flipping force and higher efficiency, especially suitable for large and heavy boards.
Thiswood panel flip machine can be integrated with various conveying systems such as roller conveyors and belt conveyors, forming a complete conveyor panel turning system.
Key specifications and capabilities include:
- Supports large-size panels such as plywood and MDF
- High-speed flipping (continuous operation)
- Customizable dimensions and automation level
- Seamless connection with sanding, laminating, and CNC lines
The windmill panel turning machine is particularly suitable for high-speed automated production environments.
Performance Features
- Integrated 201 stainless steel construction, ensuring durability and simple, convenient maintenance;
- Equipped with a stepless speed reducer with a wide speed adjustment range, suitable for conveying various types of panel materials;
- Windmill-type panel turning machine, featuring a stable structure and high cost performance.
2. Product Features & Advantages
The windmill type panel turning machine offers multiple advantages:
High Efficiency & Automation
- Fast flipping speed compared to standard panel flip machines
- Fully automatic operation reduces labor cost
Heavy-Duty Performance
- Idealheavy duty panel flip machine for large boards
- Strong structure ensures long-term stability
Safe & Damage-Free Operation
- Smooth turning prevents surface scratches
- Improves worker safety by eliminating manual flipping
Flexible Integration
- Compatible with sanding, laminating, and pressing lines
- Works as part of a complete automatic panel turning system
Customizable Design
- Adjustable size, speed, and flipping angle
- Suitable for different woodworking production requirements
3. Applications & Use Cases
The windmill type panel turning machine is widely used in various woodworking and panel processing industries:
Wood-Based Panel Production
- Plywood manufacturing lines
- MDF and particle board plants
Furniture Manufacturing
- Cabinet panel processing
- Wardrobe and modular furniture production
Surface Processing Lines
- Sanding production lines
- Laminating and hot press lines
Automated Production Systems
- Integrated with CNC machines
- Used in fully automatic panel handling systems
Typical application scenarios:
- Panel flipping between sanding stages
- Turning boards before laminating or coating
- Reversing panels for double-side processing
This panel turnover machine for sanding and laminating line plays a key role in improving workflow continuity and automation level.
4. Technical Parameters
| Working height | 1000 ± 50 mm(Customizable) |
| Feed reducer power | 1.1kW |
| Tilting Reducer Power | 1.5kW |
| Tilting Frequency | 6-12 pcs |
| Roller Diameter | Φ108mm (201 stainless steel) |
| Feeding speed | Stepless speed regulation: 18-90 m/min |
5. Conclusion
The windmill type panel turning machine is an essential solution for modern automated woodworking production. As a high-performance automatic panel flipper, it enhances productivity, reduces labor intensity, and ensures safe handling of large panels.
With its strong adaptability, high efficiency, and seamless integration capability, this industrial panel flipping machine is an ideal choice for manufacturers seeking to upgrade their production lines and achieve intelligent automation.
