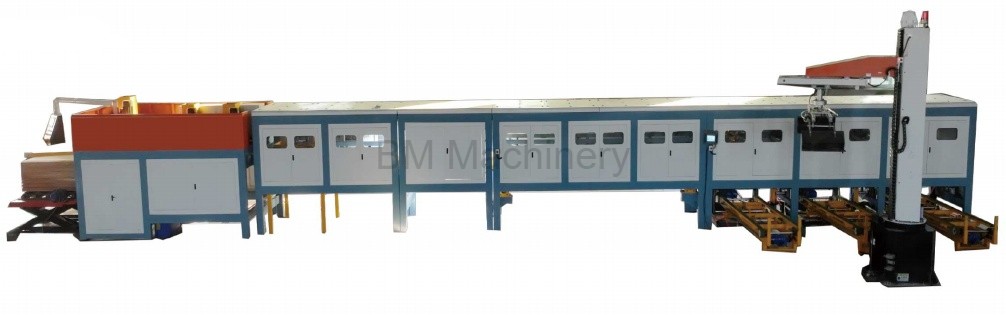

Veneer Al Grading Line
As a high-performance veneer sorting line, it enables manufacturers to accurately classify veneer sheets based on defects, grain, and appearance, helping optimize material utilization and reduce waste.
1. Product Description
- Equipped with advanced sensors or manual/automatic grading modules
- Enables continuous operation for high-capacity production
- Integrates seamlessly into plywood production lines
- Supports customizable grading standards (A/B/C grades, etc.)
- Works as a complete automatic veneer sorting system
2. Product Features & Advantages
High Precision Grading
Thishigh-precision veneer grading equipment accurately detects veneer defects, color variations, and grain consistency, ensuring reliable sorting results.
Automation & Efficiency
Theautomatic veneer grading line reduces manual labor and significantly improves grading speed, helping factories achieve higher throughput.
Intelligent Control System
The system supports programmable grading standards, making the industrial automatic veneer grading solution flexible for different production needs.
Stable Performance
Designed for continuous operation, this veneer grading machine ensures long-term stability and minimal downtime.
Improved Material Utilization
By using a veneer defect detection and grading line, manufacturers can maximize the use of raw materials and reduce waste.
3. Applications
- Plywood manufacturing plants
- LVL (Laminated Veneer Lumber) production lines
- Furniture veneer processing factories
- Decorative panel production
4. Product Specifications
| Description | Parametes |
| Dimensions | 24.5m*5.6m*3m |
| Rated Power | 30kW |
| Operating Power | 10kW |
| Infeed Size | Length: 1250~1280m; Width: 500~700m; Thickness: 1~4mm |
| Plate Moisture Content | 10%~30% |
| Defect Type | Dead knots, slipknots, dry scars, cracks, gaps, bark, burrs, holes, sinew, short rulers |
| Efficiency | 60 sheets/min |
| Sorting Grade | 3,4,5(customized) |
| Packaging Style | customized |
| Operating Temperature | -30~80℃ |
| Operating Relative Humidity | 30%~70% |
5. Product usage process demonstration

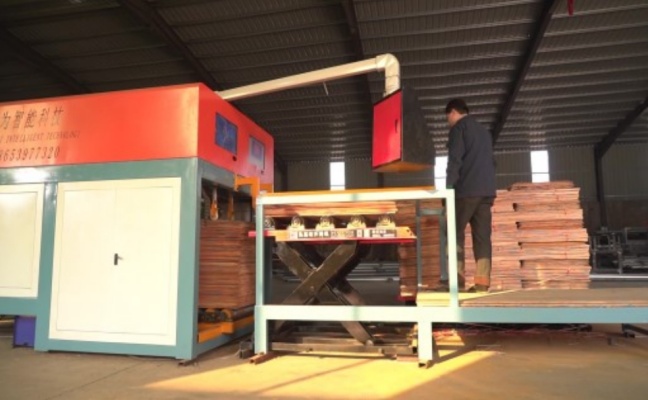

- Automated Feeding
Utilizing advanced gap technology, the system enables automated feeding of individual boards. A dual-buffer hopper design ensures seamless integration between feeding and sorting processes, improving production efficiency.

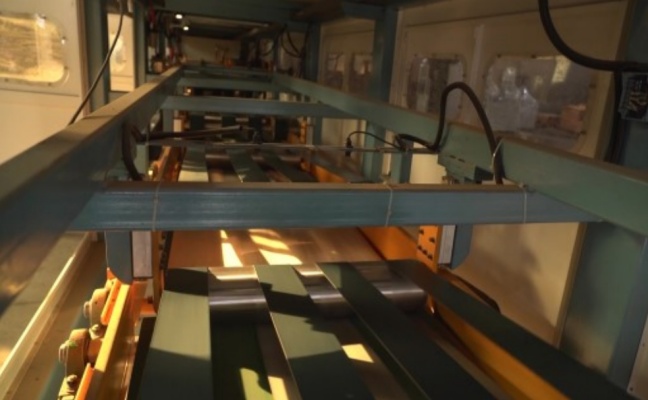

- Corrective Conveying
A specially designed corrective conveying mechanism addresses potential board tilting issues during the suction process, ensuring centered conveying and neat board collection.

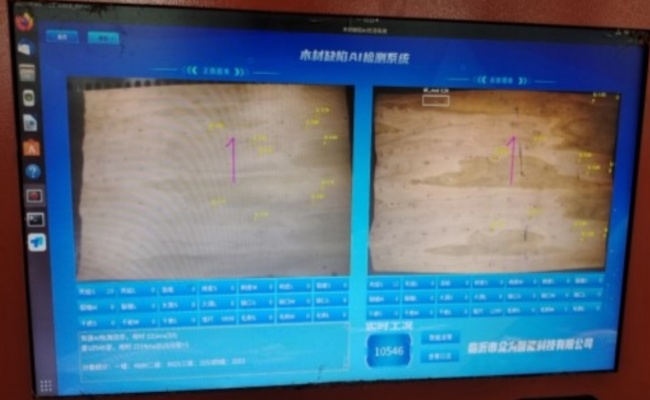

- Intelligent Recognition
Leveraging deep learning technology, the system accurately identifies double-sided defects in individual boards, performs statistical analysis and precise grading, providing strong support for subsequent processing.

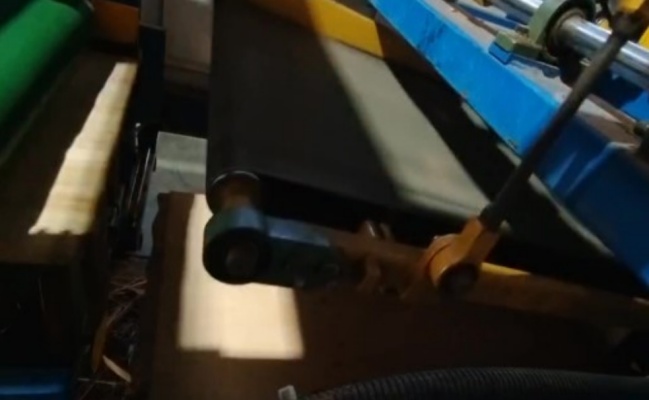

- Grading and Sorting
The grading and sorting mechanism uses an opening and closing mechanism to buffer individual boards according to different grades. The grading bins employ upper and lower level buffers and a four-sided alignment mechanism to achieve neat board collection.

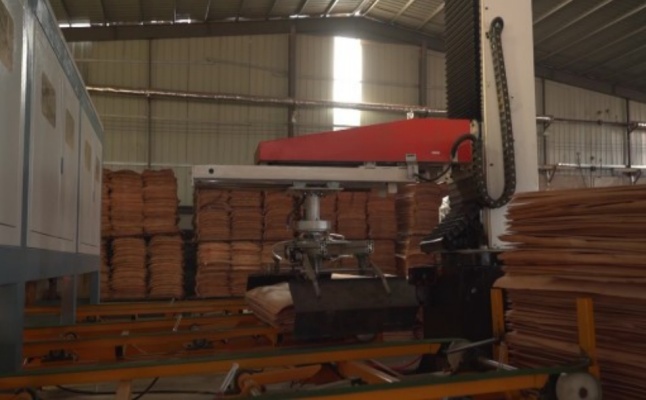

- Automatic Palletizing
After each grade of board is discharged, the robot can automatically palletize them according to a preset palletizing pattern to meet diverse customer needs.
