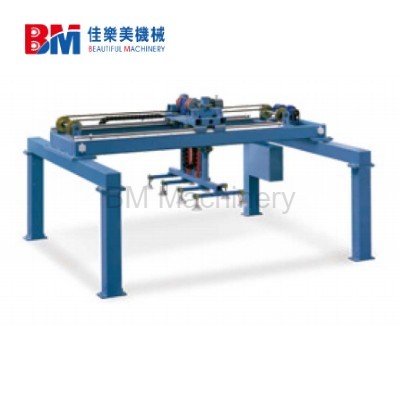

Transverse Gantry Vacuum Suction Panel Feeder
1. Product Description
The Transverse Gantry Vacuum Suction Panel Feeder adopts a robust gantry structure and powerful vacuum system, ensuring stable performance and seamless integration with CNC routers and machining centers. As an essential CNC Panel Feeder, it's capable of conveying large panels, MDF boards, plywood, and other sheet materials with precision and reliability.
ThisGantry Vacuum Feeder features adjustable suction positions, enabling intelligent and flexible handling across different sheet sizes. The precision linear rails and servo-controlled motion make this machine a high-performing automated panel loader for advanced manufacturing.
2. Product Features & Advantages
- High-precision cylindrical linear guide rail drive system, featuring low transmission noise and high accuracy;
- Equipped with a high-power vacuum pump to stably maintain negative pressure in the suction cups, ensuring stable and continuous panel feeding.
- High Efficiency Vacuum Panel Feeder structure ensures rapid and smooth loading, significantly reducing manual labor.
- Servo-driven transverse gantry motion delivers precise and repeatable movement for every cycle.
- Adjustable vacuum suction heads adapt to varying panel sizes and material types.
- Highly compatible CNC Vacuum Feeder solution, ideal for integration with automatic processes and smart factories.
- Heavy duty design supports long term use and high production throughput.
3. Applications & Use Cases
The Transverse Gantry Vacuum Suction Panel Feeder is engineered for high-demand environments such as CNC woodworking workshops, furniture manufacturing, panel processing factories, and automated assembly lines. It is ideal for feeding sheet materials into CNC routers, edge banders, saws, and drilling machines.
Common applications include:
- Feeding large MDF, plywood, or HDF sheets for precision cutting.
- Automated panel loading on CNC machining centers.
- Production lines requiring synchronized loading and unloading.
- Heavy load environments needing reliable gantry vacuum feeder machineperformance.
4. Technical Parameters
| Working height | 1000 ± 50 mm |
| Feed reducer power | 1.5kW |
| Vacuum pump power | 2.2kW (optional) |
| Feeding speed | Variable frequency speed control: 17~52 m/min |
5. Conclusion
The Transverse Gantry Vacuum Suction Panel Feeder is a robust and efficient CNC Vacuum Feeder solution designed to elevate production capacity while reducing labor costs. Its advanced vacuum suction, adjustable gantry structure, and seamless automation integration make it indispensable for modern manufacturing.
