PP Plastic Film Faced Plywood production line
PP Plastic Film Faced Plywood production line

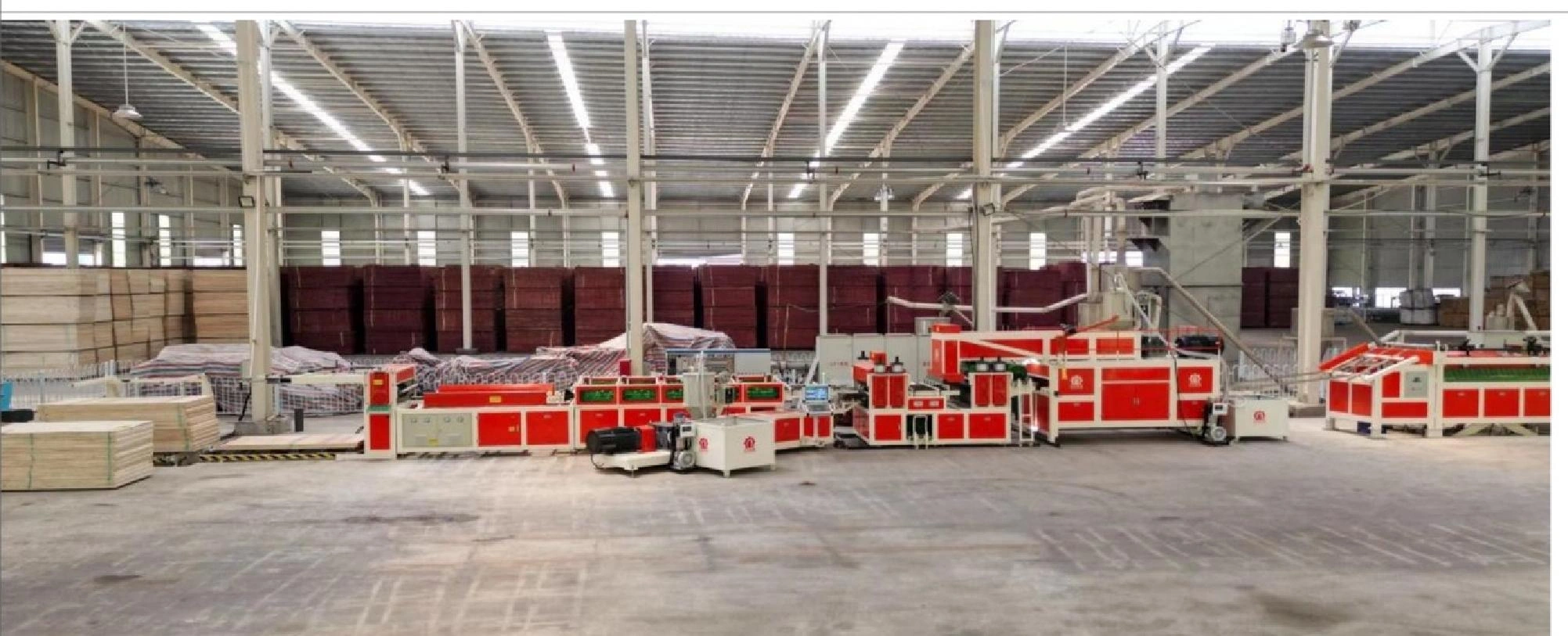

The PP plastic film faced plywood production line is a high-efficiency and fully automated solution designed for manufacturing durable plastic film faced plywood used in construction and industrial applications. This advanced plywood production line integrates veneer preparation, gluing, assembly, hot pressing, and PP film lamination into a seamless workflow.
Compared with traditional systems, the automatic PP film faced plywood production line ensures superior bonding strength, precise thickness control, and enhanced surface quality. The finished panels are waterproof, wear-resistant, and suitable for repeated use in demanding environments.
Compared with traditional systems, the automatic PP film faced plywood production line ensures superior bonding strength, precise thickness control, and enhanced surface quality. The finished panels are waterproof, wear-resistant, and suitable for repeated use in demanding environments.
Quantity:
PP Plastic Film Faced Plywood production line

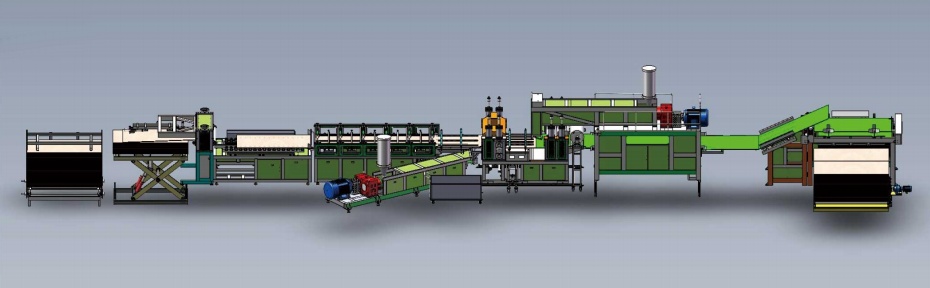

1.PP plywood production line main components Machinery List
| Step | Picture | Name | Function | Parameter List |
|---|---|---|---|---|
| 1 |  | Turnover Machine | Take the forklift to bring in two of the Olson slabs. Side flush, convenient back double-sided drilling. Won't run off | 1. Worm gear reducer (Model 150), Qty: 1 set 2. Motor: 1.5 kW, Grade 4, Brand: Rongcheng Shuoli, Energy Class III, Qty: 1 set |
| 2 |  | Lifter | The slab automatically enters the drilling machine and then lifts. The table automatically raises the height of one board. Keep the slab flat with the punch at all times | 1. Worm gear reducer (Model 150), Qty: 1 set 2. Motor: 1.5 kW, Grade 4, Brand: Rongcheng Shuoli, Qty: 1 set 3. Hydraulic station: 3 kW motor, Qty: 1 set 4. All rollers are galvanized |
| 3 |  | Punching Machine | Drill holes in the upper and lower surfaces of the slab. The hole depth is 3mm | 1. Manganese steel punching blades (customized), Qty: 400 pcs 2. Worm gear reducer (Model 175), Qty: 1 set 3. The use of four motor 7.5KW, Brand: Rongcheng Shuoli, National standard III energy consumption, Qty: 1set |
| 4 |  | Conveyor | The slab with holes drilled is automatically fed into the differential. At the same time, the surface of the machine to remove ash and slag, enter next stage. | High-speed aluminum booster fan, 0.75 kW, Qty: 1 set |
| 5 |  | DifferentialSpider | Each slab that is fed into the hole is connected automatically, so that each slab forms an infinitely extended whole. | 1. All Aluminum RV reducer with copper shaft, Qty: 1 set 2. All-aluminum Motor: 3 kW, Grade 4, Brand: Xingze (Taizhou), Qty: 1 set |

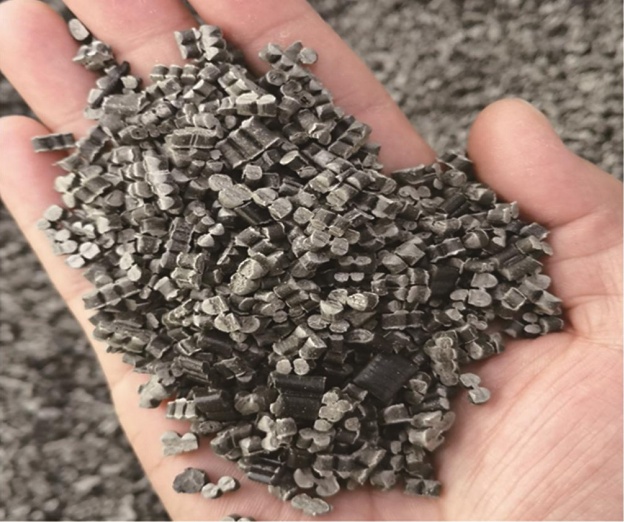

| 6 |  | Lower Host Machine | The regenerated pp particles are evenly spread under the slab after being dissolved at high temperature. | 1. Motor: 75 kW, Grade 4, Brand: Rongcheng Shuoli, National standard III energy consumption, Qty: 1 set 2. Gearbox: European standard hard gear (Model 225), Qty: 1 set 3. Screw: European standard Model 100, alloy & galvanized surface, Qty: 1 set 4. Abrasive tools: European standard 1400 mm model, special abrasive steel, Qty: 1 set |

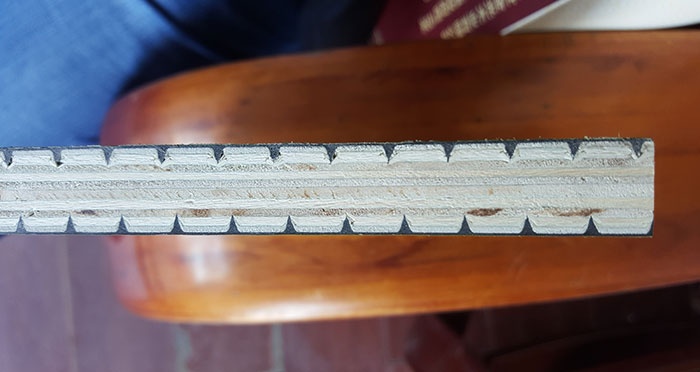

| 7 |  | Plating Press | Apply high pressure to the hot melt plastic laid on the slab surface. Press into the holes in the panel surface to make plastic and wood. Better bonding together, while the surface coating flatten and flatten. | 1. All aluminum RV reducers with copper shaft, Qty: 2 sets 2. All aluminum Motors: 3 kW, Grade 4, Brand: Taizhou Xingze, National standard Level 3 energy consumption, Qty: 2 sets |
| 8 |  | PLC Electric Control System | Control all operation of plastic coating production line. | 1. PLC: All under the Siemens brand 2. Electrical components: Schneider (Shanghai) 3. Inverters: Driss brand (75 kW ×2, 3 kW ×3) 4. Software: Remote diagnosis, debugging, control, and other functions |
| 9 |  | Upper Host | The regenerated pp particles were evenly dissolved at high temperature. Lay on top of the slab. | 1. Motor: 75 kW, Grade 4, Brand: Rongcheng Shuoli, national standard three energy consumption, Qty: 1 set 2. Gearbox: European standard hard gear (Model 225), Qty: 1 set 3. Screw: European standard Model 100, alloy & galvanized surface, Qty: 1 set 4. Grinding tools: European standard 1400mm model, special abrasive steel, Qty: 1 set |
| 10 |  | Board Cutting Machine | The laminated sheet is broken apart by gravity. At the same time palletizing alignment. | 1. Cycloidal gearbox, Qty: 1 set 2. Motor: 0.75 kW, Grade 4, Brand: Rongcheng Shuoli, national standard three energy consumption, Qty: 1 set 3. High-power Hydraulic station: 3 kW, Qty: 1 set 4. Lifting table Rollers: Fully galvanized |
| 11 |  | Ground Roller | Used for stacking finished, trimmed plywood panels, awaiting pickup by a forklift for edge-sawing. | Motor: 3 kW, Grade 4, Qty: 1 set |
2. Technical Parameters & Production Process
| Product Name | PP Plywood Production Line |
| Total Power | 160 KW |
| Date of Delivery | 50 working days |
| Capacity | 120 T/h |
| Machinery Size | 31 m × 7 m × 3.6 m |
| Weight | 28 T |
| Production Thickness | 6 mm – 22 mm |
| Working Pressure | 8 MPa (constant voltage) |
| PLC Brand | Mitsubishi (Japan) |
| Inverter | Delta (Taiwan) |
| Operator | 2 persons |
| Overall Monitoring Display | Yes |
| Manual Operation | Yes |
| Automatic Operation | Yes |
| Remote Operation | Yes |
| Remote Diagnosis | Yes |
| Remote Debugging | Yes |
| Remote System Upgrade | Yes |
| Electrical Accessories | Schneider Brand |
| Bearing | Harbin |
| Screw Barrel | Desalination steel, straightened and alloy-treated (5 years lifespan) |
| Net Changer | Hardened heat-treated steel (5 years lifespan) |
| Head (Die Head) | Hardened heat-treated steel (5 years lifespan) |
| Tooth Material | Hardened heat-treated steel (5 years lifespan) |
| Reducer | Tin bronze transmission shaft |
| Motor | Inverter motor |
| Mirror Roller | Extra-thick (20 mm) |
| Calendering Method | Air-hydraulic jack |

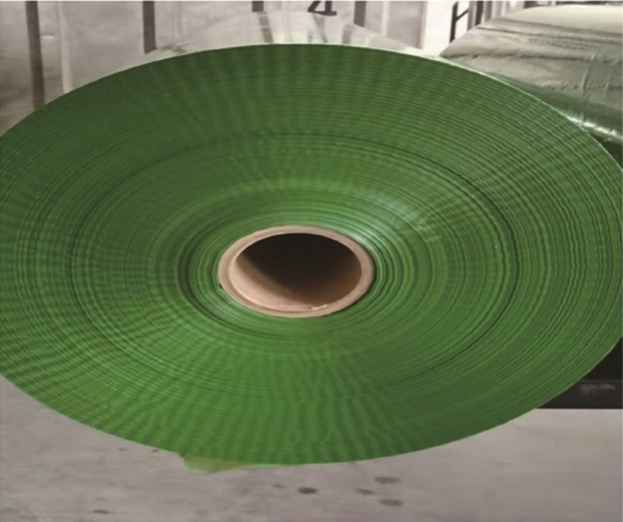

| Green Film Axis | Pneumatic expansion shaft |
| Green Film Brake | Resistance controlled brake |
| Water Cycle | Galvanized pipe circulation |
| Differential Cylinder | Solid iron bar |

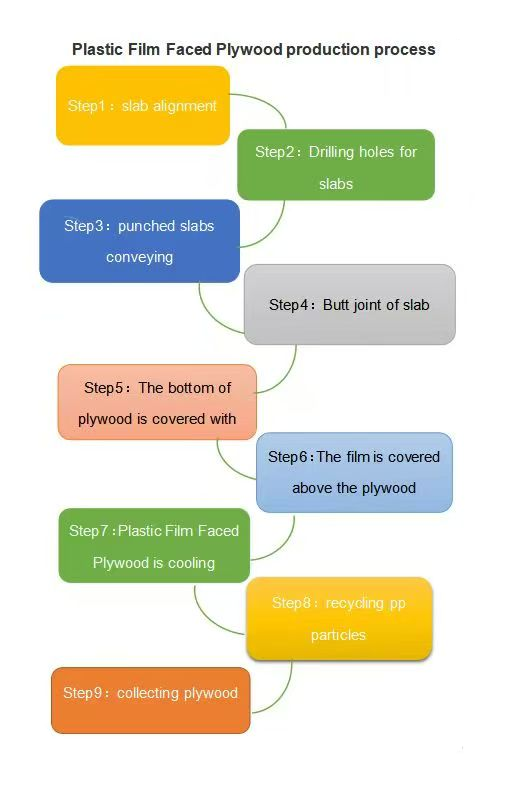

ProductionProcess flow chart
3. Product Features & Advantages
The PP plastic film faced plywood production line offers multiple advantages:

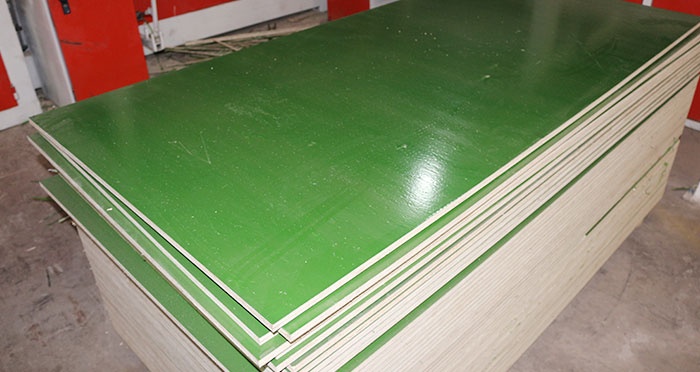

High Durability & Reusability
PP-coated plywood panels can be reused many times, significantly reducing costs.
Excellent Waterproof Performance
The laminated PP film provides superior moisture resistance and prevents deformation.

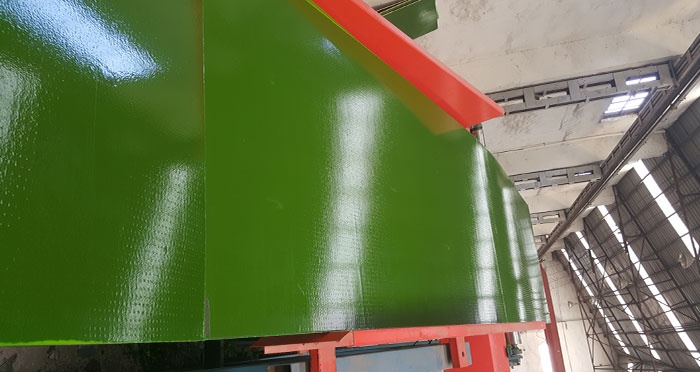

Smooth Surface Finish
Produces panels with a non-stick surface, ideal for concrete formwork applications.
Automated & High Efficiency
The high efficiency plywood manufacturing line reduces labor costs and increases output.
Eco-Friendly Production
Reduced use of release agents and improved material utilization.
4. Applications & Use Cases
The construction plywood production equipment is widely used in:
- Construction Industry: Concrete formwork, slab casting, and high-rise building projects.
- Infrastructure Projects: Bridges, tunnels, and large-scale civil engineering works.
- Industrial & Packaging Use: Heavy-duty packaging panels and transport flooring.
- Vehicle & Container Manufacturing: Durable flooring and structural panels.
Thanks to its strength and waterproof performance, PP plastic coated plywood is increasingly used in global construction projects requiring high durability and repeated usage.
5. Conclusion
The PP plastic film faced plywood production line is an ideal solution for manufacturers seeking a turnkey plywood production line solution. With advanced automation, reliable performance, and high-quality output, it meets the growing global demand for durable construction materials.
By investing in a modern film faced plywood machine, businesses can improve production efficiency, reduce operational costs, and gain a competitive edge in the plywood industry.
