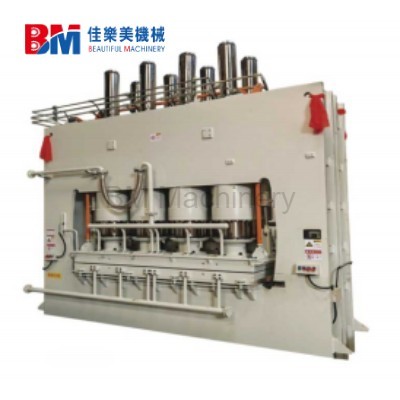

Impregnated Paper Lamination Press
This short cycle press machine ensures fast production cycles, stable bonding quality, and excellent surface finishing. It is an essential piece of equipment in modern automated panel manufacturing lines.
1. Product Description
The impregnated paper lamination press machine is engineered for continuous and high-speed lamination of decorative papers onto substrates like MDF, HDF, and particleboard.
Key working process:
- Feeding of MDF or particleboard panels
- Placement of melamine impregnated paper
- High-pressure and high-temperature pressing
- Surface embossing and curing
During the lamination process, the resin inside the impregnated paper melts and cures, forming a strong, wear-resistant decorative surface bonded to the board
Technical highlights:
- Short cycle pressing technology
- PLC automatic control system
- Precision temperature and pressure control
- Compatible with various panel sizes and thickness
2. Product Features & Advantages
High Efficiency Production
The short cycle hot press significantly reduces pressing time, improving production efficiency and output.
Superior Surface Quality
The melamine lamination press machine produces surfaces with:
- High abrasion resistance
- Scratch resistance
- Chemical resistance
Strong Bonding Performance
Through optimized pressure and temperature control, the machine ensures excellent adhesion between decorative paper and substrate.
Energy Saving & Automation
- Fully automatic operation
- Reduced labor cost
- Stable and repeatable production
Wide Compatibility
Suitable for:
- MDF
- Particleboard
- Plywood
3. Applications & Use Cases
The impregnated paper lamination press is widely used in multiple industries:
Furniture Manufacturing
- Wardrobes
- Cabinets
- Office furniture
Interior Decoration Panels
- Wall panels
- Decorative boards
- Partition panels
Flooring Industry
- Laminate flooring panels
- Wear-resistant surfaces
Industrial Panel Production
- Customized panel production lines
- Mass production of decorative boards
These laminated panels offer improved mechanical strength, moisture resistance, and durability compared to untreated boards
4. Technical Parameters
| Item | Specification |
|---|---|
| Brand | BM |
| Model | 1600T-4×8 Double Sided |
| Main Frame Processing Technology | Welded integral structure |
| Main Cylinder | φ 320 × 250 |
| Hot Plate Size | 130/110 × 1400 × 2600 mm |
| High Oil Storage | Barrel type |
| Heightened Insulation Pad | Each main cylinder is equipped with thermal insulation, ventilation, and equal-height insulation pad to collect residual liquid, reduce cylinder temperature, and ensure durability of cylinder seal |
| Balance Mechanism | Synchronous four-link mechanism |
| Hydraulic System | Servo energy-saving type |
| Board Feeder | Servo fast type, with pressure paper stick |
| Electric Control Cabinet | Siemens PLC programmable control, touch screen to set pressure, time, and other pressing parameters |
| Power | 30 kW |
| Automatic Line | A set of front and rear automatic line drying boards including dust removal |
5. Conclusion
The impregnated paper lamination press machine is a core equipment in modern panel processing industries. With its high efficiency, stable performance, and excellent lamination quality, it plays a vital role in producing decorative MDF and particleboard panels.
Whether for furniture manufacturing or decorative panel production, this melamine lamination press provides a reliable and cost-effective solution for high-quality surface finishing.
