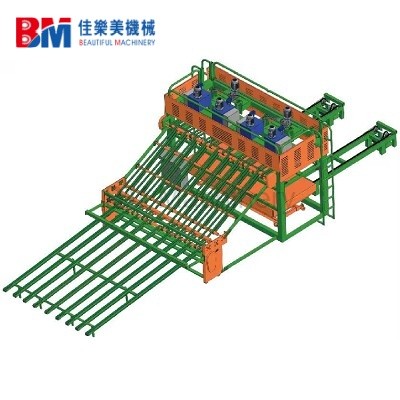

8FT Veneer Stacker
8FT Veneer Stacker
The 8FT Veneer Stacker is a high-efficiency automatic stacking solution designed for modern plywood production lines. It integrates advanced mechanical, hydraulic, pneumatic, and electrical control systems to achieve fast, accurate, and continuous veneer stacking.
This machine significantly reduces manual labor, improves production efficiency, and ensures consistent stacking quality. It is widely used in veneer peeling lines and clipping systems, making it an essential piece of equipment for automated wood processing plants.
This machine significantly reduces manual labor, improves production efficiency, and ensures consistent stacking quality. It is widely used in veneer peeling lines and clipping systems, making it an essential piece of equipment for automated wood processing plants.
Quantity:
8FT Veneer Stacker
1. Product Detailed Description
The 8FT Veneer Stacker is engineered to automatically collect, align, sort, and stack veneer sheets after peeling or clipping. It works seamlessly with veneer peeling machines, veneer clippers, and conveyor systems to form a fully automated production line.
The machine adopts an intelligent control system (PLC + touch screen), allowing precise coordination of feeding, alignment, grading, and stacking processes. It can handle various veneer sizes such as 4×8 ft or 8×4 ft sheets and supports multi-stack configurations (single, double, or multiple bins).
With automatic conveyors and hydraulic lifting systems, the stacker ensures stable operation and efficient material handling, minimizing damage to veneers while maintaining high output rates.
2. Features and Advantages
- Efficient Veneer Collection:Adapts to 8-foot veneers, auto-collects and arranges, boosting efficiency with less manual work.
- Precise Alignment:Equipped with positioning and guiding functions to ensure neat stacking of veneers, reducing subsequent processing dificulty.
- Flexible Adjustment:Can adjust collection sped and force according to parameters like veneer thickness and material, adapting to various needs.
- Stable Operation:High-quality components with a solid structure reduce failures and ensure continuous production.
- Convenient Maintenance:Reasonable design allows easy disassembly and cleaning, lowering maintenance costs and time.
3. Applications & Use Scenarios
3.1 Main Applications
- Plywood manufacturing plants
- Veneer production lines
- Wood panel processing industries
3.2 Application Scenarios
- Core veneer stacking after peeling
- Face veneer sorting and stacking
- Automatic stacking after veneer clipping
- Integration into full plywood production lines
3.3 Suitable Materials
- Hardwood veneer (eucalyptus, birch, etc.)
- Softwood veneer (pine, poplar, etc.)
- Thin decorative veneers and core veneers
The machine is particularly suitable for high-capacity industrial production environments where efficiency, consistency, and automation are critical.
4. Technical Parameter
| Item | Specification |
|---|---|
| Model | 2600 |
| Application | Sheet palletizing |
| Plate stacking speed | 60–90 m/min |
| Plate stacking width | 1300 mm |
| Plate stacking length | 2600 mm |
| Plate stacking thickness | 1.5–4.0 mm |
| Plate stacking height | 1200 mm |
| Inspection level | Two-level pallet stack |
| Total power | 28 KW |
| Operating method | Pneumatic tackling |
| Lifting method | Hydraulic lifting platform |
| Plate transfer | Remote-controlled chain transfer |
| CNC box | Touch screen PLC |
| Dimensions | 12000 × 3300 × 2600 mm |
| Weight | ~4500 KGS |
