4x8 ft Intelligent RGV with Longitudinal and Transverse Conveying
As a key component of an automated RGV conveyor system, it significantly improves production efficiency, reduces manual labor, and enhances workflow automation in industries such as woodworking, furniture manufacturing, and panel processing. According to industry applications, RGV systems are widely used in logistics and production lines to improve efficiency and reduce costs.
1. Product Description

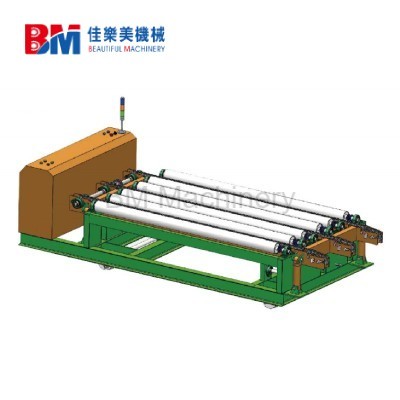

The 4x8 ft RGV system is engineered for intelligent material transfer with dual-direction conveying capability. Unlike traditional conveying equipment, this longitudinal and transverse RGV allows multi-directional movement, ensuring seamless integration with automated production lines.
Key Technical Features:
- 4x8 ft standard working size, suitable for panel processing
- Dual-direction movement: longitudinal + transverse conveying
- PLC-controlled intelligent positioning system
- High load capacity for industrial material handling
- Compatible with automated production lines and smart factory systems
This industrial material handling RGV can be customized according to different factory layouts, making it an ideal solution for flexible manufacturing systems.
2. Product Features & Advantages
The intelligent RGV system offers multiple advantages for modern factories:
High Efficiency
The automated RGV conveyor system ensures fast and continuous transportation, significantly improving production throughput.
Flexible Conveying
With longitudinal and transverse conveying, the system can adapt to complex production layouts and multi-station operations.
Intelligent Control
Equipped with advanced control systems, the smart factory RGV solution enables precise positioning and automated scheduling.
Cost Reduction
By reducing manual handling and optimizing logistics, this panel handling RGV system lowers labor costs and increases operational efficiency.
High Safety
The rail guided vehicle operates on fixed tracks, minimizing collision risks and ensuring safe material transport.
3. Applications & Use Cases
The 4x8 ft intelligent RGV is widely used in various industrial scenarios:
Woodworking & Furniture Industry
- Panel transportation in furniture production lines
- Integration with CNC machines and edge banding lines
Panel Processing Industry
- MDF, plywood, and board conveying
- Automated sorting and transfer systems
Smart Warehousing
- Connection between storage systems and production lines
- High-density storage logistics automation
Manufacturing Production Lines
- Multi-station material transfer
- Buffer zone and assembly line integration
This intelligent conveying system for furniture factory is especially suitable for high-volume, automated production environments.
4. Technical Parameters
| L | W | H |
| 3535mm | 1500mm | 700mm |
| Rated Load | 3000kg |
| Distance on top of roller above ground | 700mm |
| Travel Speed | 10~30m/min |
| Positioning Speed | 1~2m/min |
| Roller Coveying Speed | 8.5m/min |
| Power | 6.75kw |
5. Conclusion
The 4x8 ft intelligent RGV with longitudinal and transverse conveying is a highly efficient and flexible automated RGV system designed for modern industrial applications. With its intelligent control, dual-direction movement, and strong adaptability, it plays a critical role in building smart factories and improving production efficiency.
As an essential part of industrial material handling RGV solutions, it helps manufacturers achieve automation, reduce costs, and enhance competitiveness in the global market.
