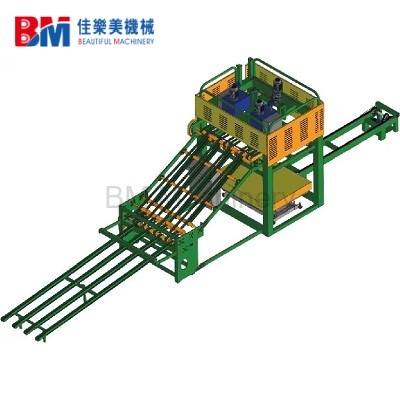

4FT Veneer Stacker
4FT Veneer Stacker
The 4FT Veneer Stacker is an advanced automated machine designed for efficient stacking and sorting of veneer sheets in plywood production lines. Integrated with veneer peeling machines, it significantly improves productivity, reduces manual labor, and ensures precise, uniform stacking.
This machine is widely used in modern plywood factories, offering high-speed operation, intelligent control, and customizable configurations to meet various production requirements. By automating the stacking process, it enhances production efficiency while maintaining consistent veneer quality.
This machine is widely used in modern plywood factories, offering high-speed operation, intelligent control, and customizable configurations to meet various production requirements. By automating the stacking process, it enhances production efficiency while maintaining consistent veneer quality.
Quantity:
4FT Veneer Stacker
1. Product Detailed Description
The 4FT veneer stacker is typically installed after the veneer peeling or clipping process. It automatically receives veneer sheets via conveyors or vacuum systems and stacks them neatly according to preset dimensions or grading requirements.
Equipped with a PLC control system and automated feeding mechanism, the machine ensures high precision stacking and continuous operation without manual intervention. It supports different veneer sizes and thicknesses, making it suitable for various plywood production needs.
Depending on configuration, the machine can include:
- Vacuum suction system or air blower feeding
- Belt or roller conveyor system
- Hydraulic lifting platform
- Multi-bin sorting system (optional)
2. Features and Advantages
- Efficient Board Collection: Adapts to 4-foot veneers, auto-collects and arranges, boosting efficiency with less manual work.
- Precise Alignment: Equipped with positioning and guiding functions to ensure neat stacking of veneers, reducing subsequent processing difficulty.
- Flexible Adjustment: Can adjust collection speed and force according to parameters like veneer thickness and material,adapting to various needs.
- Stable Operation: Adopts high-quality components with a solid structure, reducing operational failures and ensuring continuous production.
- Convenient Maintenance: Reasonable design allows easy disassembly and cleaning, lowering maintenance costs and time.
3. Main Uses and Application Scenarios
3.1 Plywood Manufacturing Plants
Used in complete veneer production lines for stacking core veneers or face veneers after peeling.
3.2 Veneer Processing Factories
Ideal for sorting and stacking veneers of different sizes and grades.
3.3 Wood-Based Panel Industry
Applicable in the production of:
- Plywood
- Blockboard
- LVL (Laminated Veneer Lumber)
3.4 Automated Production Lines
Can be integrated with:
- Veneer peeling machines
- Veneer dryers
- Veneer grading systems
3.5 Large-Scale Industrial Applications
Suitable for high-output factories requiring continuous, high-speed veneer handling operations.
4. Technical Parameter
| Model | 1300 |
| Purpose | Veneer Stacking |
| Board Receiving Speed | 60–90 m/min |
| Board Width | 880 mm |
| Board Length | 1300 mm |
| Board Thickness | 0.5–3.0 mm |
| Board Height | 1200 mm |
| Sorting Grade | Grade 2, One Stack |
| Total Power | 18 KW |
| Operation Mode | Pneumatic Alignment |
| Lifting Method | Mechanical |
| Full Board Transmission | Remote Control Chain Transmission |
| Control System | Touchscreen PLC (CNC Control Box) |
| Overall Dimensions | 12000 × 3300 × 2600 mm |
| Weight | Approx. 3500 KG |
