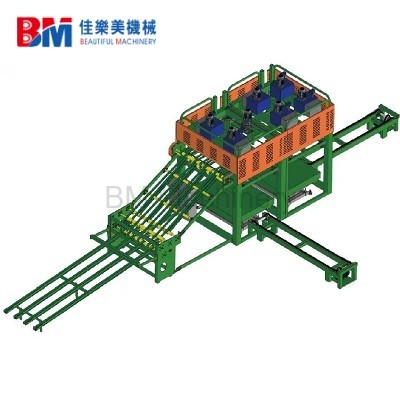

4FT Veneer Double Position Stacker

The 4FT Veneer Double Position Stacker is a highly efficient automatic stacking solution designed for modern plywood and veneer production lines. Integrated with advanced control systems and dual-position stacking technology, this machine significantly improves stacking speed, reduces labor costs, and ensures precise, orderly veneer stacking.

Widely used in automated veneer peeling lines, this stacker is capable of handling different veneer sizes and thicknesses while maintaining high-speed, stable, and continuous production performance. It is an essential piece of equipment for achieving efficient and intelligent plywood manufacturing.

Quantity:

Contact Now

4FT Veneer Double Position Stacker

1. Detailed Product Description

The 4FT Veneer Double Position Stacker is designed to automatically receive veneers from peeling or clipping machines and stack them into neat piles using a dual-station (double position) system.

With intelligent PLC control and integrated conveyor systems, the machine can:

Automatically detect veneer sheets
Transfer them via conveyor or vacuum system
Stack veneers into two separate positions simultaneously
Output finished stacks without interrupting production

The dual-position design allows continuous operation, meaning one stack can be discharged while the other continues stacking—maximizing efficiency and minimizing downtime.

This equipment supports customization based on production requirements, including stacking size, conveyor configuration, and control systems.

2. Features & Advantages

2.1 Dual Position High Efficiency

Two stacking stations operate alternately
Continuous production without stopping
Greatly improves output capacity compared to single-stack systems

2.2 Fully Automatic Operation

Integrated PLC control (e.g., Siemens system)
Automatic sensing, feeding, stacking, and unloading
Reduces manual labor and operational errors

2.3 Precision Stacking System

Ensures neat and uniform veneer piles
Improves downstream processing quality
Suitable for both full sheets and random veneer pieces

2.4 High-Speed Performance

Designed to match high-speed peeling lines
Typical working speeds up to 40–140 m/min depending on configuration

2.5 Intelligent Conveying & Output

Equipped with belt/roller conveyors
Automatic discharge when stack reaches preset height
Ensures smooth transition to next process

2.6 Versatile & Customizable

Supports multiple veneer sizes (4ft standard)
Adjustable stacking parameters
Custom bins (single, double, or multi-position)

2.7 Reduced Labor Cost

Eliminates manual stacking
Reduces workforce requirement
Improves workplace safety

3. Main Applications & Use Scenarios

3.1 Plywood Manufacturing Plants

Used in full plywood production lines to stack core veneers efficiently after peeling.

3.2 Veneer Peeling Production Lines

Installed after veneer peeling machines to handle continuous veneer output automatically.

3.3 LVL & Engineered Wood Production

Suitable for laminated veneer lumber (LVL) and other engineered wood products requiring high-volume veneer processing.

3.4 Automated Wood Processing Factories

Ideal for smart factories aiming to achieve automation, reduce labor, and improve productivity.

3.5 High-Capacity Industrial Production

Best suited for factories with:

Continuous production demands
High-speed peeling lines
Large-scale veneer output

4. Technical Parameter

Model	1300
Purpose	Veneer Stacking
Board Receiving Speed	60–90 m/min
Board Width	880 mm
Board Length	1300 mm
Board Thickness	0.5–3.0 mm
Board Height	1200 mm
Sorting Grade	Grade 2, One Stack
Total Power	18 KW
Operation Mode	Pneumatic Alignment
Lifting Method	Mechanical
Full Board Transmission	Remote Control Chain Transmission
Control System	Touchscreen PLC (CNC Control Box)
Overall Dimensions	12000 × 3300 × 2600 mm
Weight	Approx. 3500 KG
