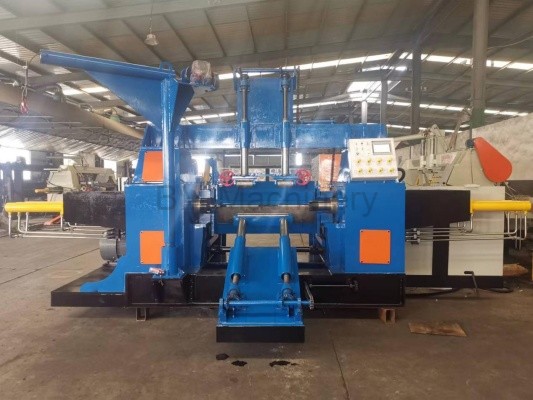

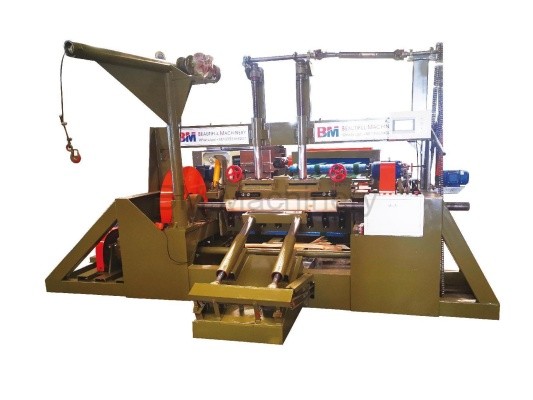

4FT Heavy-Duty Hydraulic Spindle Veneer Peeling Machine
4FT Heavy-Duty Hydraulic Spindle Veneer Peeling Machine
The 4FT Heavy-Duty Hydraulic Spindle Veneer Peeling Machine is a high-performance rotary lathe designed for efficient veneer production in plywood manufacturing. Equipped with a robust hydraulic system and precision spindle structure, this machine ensures stable operation, high output, and excellent veneer quality.
It is widely used in modern plywood factories and engineered wood production lines to process logs into uniform veneer sheets with high precision and minimal material waste.
It is widely used in modern plywood factories and engineered wood production lines to process logs into uniform veneer sheets with high precision and minimal material waste.
Quantity:
4FT Heavy-Duty Hydraulic Spindle Veneer Peeling Machine
1. Detailed Product Description
This 4FT spindle veneer peeling machine adopts a heavy-duty hydraulic-driven system combined with advanced spindle clamping technology to process logs of various diameters.
The machine rotates logs at high speed while the peeling knife cuts continuous veneer sheets with consistent thickness. The hydraulic system ensures smooth knife movement, stable pressure control, and easy operation.
Key structural components include:
- Heavy-duty welded steel frame
- Hydraulic knife holder system
- Precision spindle clamping mechanism
- Servo/CNC feeding control system
- High-strength alloy rollers
- Intelligent electrical control cabinet
This configuration ensures long-term durability, high efficiency, and superior veneer quality.
2. Product Features & Advantages
2.1 Heavy-Duty Hydraulic System
- Hydraulic knife adjustment improves precision and reduces manual labor
- Stable pressure ensures smooth peeling and better veneer surface
- Faster blade replacement and maintenance
2.2 High Precision Veneer Production
- Uniform veneer thickness with minimal deviation
- Smooth surface finish suitable for face veneer production
- Reduced core diameter for better wood utilization
2.3 Strong and Durable Structure
- Thickened steel frame minimizes vibration
- Long service life under continuous industrial operation
- Suitable for hardwood and softwood processing
2.4 Advanced Control System
- CNC/PLC control system ensures automation
- Adjustable peeling speed for different wood types
- Intelligent knife gap adjustment for consistent results
2.5 High Efficiency & Productivity
- Continuous rotary cutting improves production efficiency
- High-speed operation (up to 80–100 m/min in similar models)
- Reduced downtime with easy maintenance design
2.6 Wide Material Adaptability
- Suitable for eucalyptus, poplar, birch, rubber wood, etc.
- Capable of handling different log diameters and qualities
3. Main Applications & Use Scenarios
3.1 Plywood Manufacturing
- Core equipment for producing veneer sheets
- Used in multi-layer plywood production lines
3.2 LVL (Laminated Veneer Lumber) Production
- Ensures consistent veneer thickness for structural materials
3.3 Furniture Industry
- Produces decorative veneers for panels, cabinets, and doors
3.4 Construction & Building Materials
- Used for manufacturing formwork plywood and structural panels
3.5 Engineered Wood Industry
- Ideal for MDF surface layers, blockboard, and laminated boards
4. Technical Parameter
| Item | Specification |
|---|---|
| Brand | BM |
| Maximum Diameter of Rotary Cutting | Φ800 mm |
| Rotary Cutting Length | 700–1300 mm |
| Minimum Diameter After Peeling | Φ95 mm |
| Veneer Thickness | 0.5 – 3.0 mm |
| Machine Dimensions | 4700 × 2200 × 2400 mm |
| Machine Weight | 6500 kg |
| Total Installed Power: | |
| Main Motor | 30 kW × 1 |
| Clamping Motor | 4 kW × 2 sets |
| Fast Forward & Backward Motor | 1.5 kW × 1 set |
| Knife Adjustment Motor | 1.1 kW × 1 set |
| Hydraulic Station Motor | 0.75 kW × 1 |
| Wood Hanging Motor | 1.1 kW × 1 |
