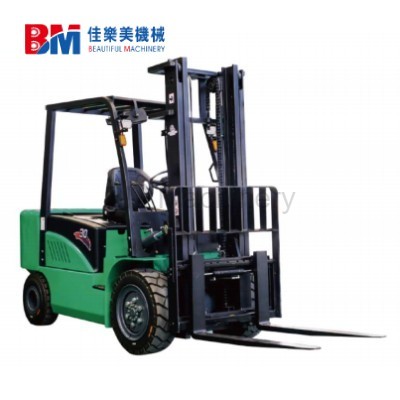

3T Electric Forklift
This industrial electric forklift is widely used in warehouses, logistics centers, manufacturing plants, and distribution systems. Compared with traditional fuel forklifts, the battery powered forklift provides lower operating cost, reduced maintenance, and environmentally friendly operation, making it an ideal solution for sustainable logistics.
1. Product Description
The 3T electric forklift truck adopts advanced electric drive technology and a high-efficiency hydraulic system. It is equipped with a lithium battery electric forklift system or lead-acid battery option, ensuring long working hours and stable performance.
With a lifting capacity of 3 tons (3000kg), this counterbalance electric forklift is suitable for both indoor and outdoor applications. The ergonomic operator cabin and intelligent control system ensure precise handling and smooth operation in all working conditions.
Key configuration includes:
- High-efficiency AC drive motor
- Energy-saving battery system
- Strong mast structure
- Precise hydraulic lifting system
- Intelligent control panel
2. Product Features & Advantages
The 3 ton electric forklift offers multiple advantages for industrial users:
Energy Saving & Eco-Friendly
The electric forklift truck produces zero emissions, making it suitable for indoor warehouse operations and environmentally regulated areas.
High Efficiency Operation
Advanced battery powered forklift system ensures long runtime, fast charging, and stable power output for continuous operation.
Strong Load Capacity
With a rated load of 3000kg electric forklift, it handles heavy pallets, raw materials, and industrial goods with ease.
Low Maintenance Cost
Compared with diesel forklifts, the 3T electric forklift has fewer mechanical components, reducing maintenance cost and downtime.
Operator Comfort & Safety
Ergonomic seat, wide visibility design, and safety systems improve operator comfort and reduce operational risk.
3. Applications & Use Cases
The industrial electric forklift 3 ton is widely used in various industries:
📦 Warehousing & Logistics
Ideal for pallet handling, stacking, loading, and unloading operations in warehouses.
🏭 Manufacturing Plants
Used for raw material transportation and finished goods handling in production lines.
🚚 Distribution Centers
Efficient for high-frequency cargo movement in logistics hubs.
🏗 Construction & Industrial Sites
🛒 Wholesale & Retail Storage
Supports efficient goods movement in large-scale retail storage systems.
4. Technical Parameters
| Item | Specification |
|---|---|
| Max Lifting Capacity | 3300 kg |
| Length (Without Fork) | 2700 mm |
| Length (With Fork) | 3920 mm |
| Width | 1250 mm |
| Height | 2350 mm |
| Vehicle Weight | 5000 kg |
| Lifting Height | 3500 mm / 4000 mm / 4500 mm (Optional two-stage mast) |
| Vehicle Material | Q325 Reinforced Thickened Steel |
| Driving Motor | 10 kW Three-phase AC Motor |
| Voltage | 83 V |
| Controller | Songzheng Controller |
| Battery | Lithium Battery (Optional) |
| Lights & Signals | Work lights, left/right turn signals, brake lights, driving lights, instrument panel, indicator lights, horn |
| Drive Axle | Integrated Fully Floating Cast Steel Axle |
| Tires | Front: 28×9-15 (Pneumatic / Solid) | Rear: 18×7-8 (Pneumatic / Solid) |
| Steering Axle | Heavy-duty Special Rear Axle for Forklift |
| Braking System | Mechanical / Hydraulic |
| Item | Specification |
|---|---|
| Lift Cylinder | Precision Machined, Aerospace-grade Steel Pipe, Single/Double Acting Cylinder |
| Fork Length | 1220 mm Forged Fork |
| Optional Fork Length | 1370 mm (Each extension adds 15 cm) |
| Hydraulic Lift Motor | 15 kW Three-phase AC Motor |
| Mast Material | 20 MNSIV J160B Mast |
| Steering Type | Hydraulic Steering |
| Turning Radius | 2100 mm |
| Battery Capacity | 300AH / 460AH / 560AH / 700AH (Optional) |
| Charging Time | 2 – 5 hours |
| Working Time | 4 – 12 hours |
| Climbing Ability | 20° |
5. Conclusion
The 3T electric forklift is a reliable, efficient, and eco-friendly electric forklift truck designed for modern industrial material handling.
With its strong 3000kg lifting capacity, advanced battery system, and low operating cost, it is an ideal choice for companies seeking a high-performance battery powered forklift for warehouse and logistics operations.
