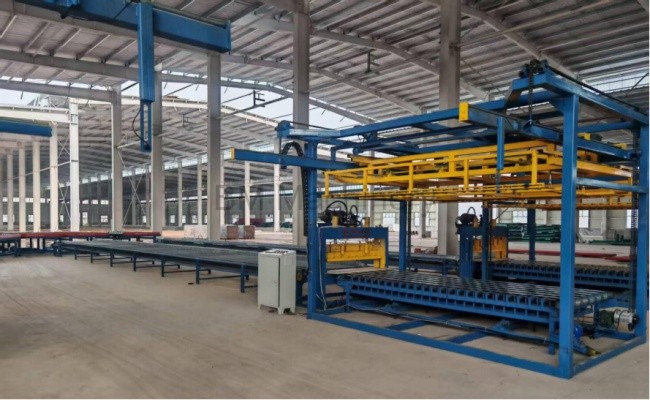

The Plywood Assembling Line with Fully Automatic Veneer Glue Spreading & Conveying System is an advanced, integrated production solution designed for modern plywood manufacturing plants. This system combines automatic glue application, veneer conveying, and board assembling into one continuous process, significantly improving production efficiency, reducing labor costs, and ensuring consistent product quality.
It is ideal for large-scale plywood production lines requiring high precision, automation, and stable performance.
It is ideal for large-scale plywood production lines requiring high precision, automation, and stable performance.
Quantity:
Plywood Assembling Line + Fully Automatic Veneer Glue Spreading & Conveying Line
1. Detailed Product Description
This production line integrates multiple functional units, including veneer feeding, glue spreading, automatic conveying, and plywood assembling. Veneers are automatically transported into the glue spreading machine, where adhesive is evenly applied to the surface. After gluing, veneers are conveyed and aligned for assembling into plywood panels.
The entire process is controlled by an intelligent automation system, ensuring synchronization between each stage. The system minimizes manual intervention, reduces material waste, and enhances bonding strength.
Main Components:
- Automatic veneer feeder
- Double-sided glue spreading machine
- Conveyor system
- Plywood assembling platform
- Alignment and positioning unit
- Control system (PLC + HMI)
2. Product Features & Advantages
2.1 High Automation Level
- Fully automatic operation from veneer feeding to assembling
- Reduces reliance on manual labor
- Improves production consistency
2.2 Uniform Glue Application
- Precision glue spreading rollers ensure even coating
- Enhances bonding strength and product durability
- Reduces glue consumption
2.3 Efficient Conveying System
- Smooth and stable veneer transfer
- Minimizes veneer damage and misalignment
- Supports continuous production
2.4 Improved Production Efficiency
- Continuous workflow design
- Suitable for high-capacity plywood manufacturing
- Significantly increases output per shift
2.5 Energy Saving & Cost Reduction
- Optimized power consumption
- Reduced adhesive waste
- Lower overall production cost
2.6 Flexible Configuration
- Customizable according to factory layout
- Compatible with different veneer sizes and thicknesses
3. Main Applications & Scenarios
Applications:
- Plywood manufacturing plants
- Film-faced plywood production
- Furniture board production
- Construction panel production
Application Scenarios:
- High-volume automated plywood production lines
- Factories upgrading from semi-automatic to fully automatic systems
- Industrial wood panel processing plants
- Export-oriented plywood manufacturing facilities
4. Technical Parameters
| Equipment / Item | Specification |
|---|---|
| Clipper Head | L1.8m × W0.9m × H1.8m |
| Motor Power: 5.5KW | |
| Conveyor Belt Servo Motor: 2.3KW | |
| Receiving Machine | L3.4m × W3.8m × H3.5m |
| Lifting Motor: 4KW | |
| Trolley Splitting Motor: 0.75KW | |
| Fork Plate Splitting Motor: 0.75KW | |
| Small Conveyor Plate Servo Motor: 1.2KW | |
| Pallet Motor: 0.75KW | |
| Collecting Plate: 65cm long, single-side fork | |
| Mesh Belt | 1332mm wide × 2500mm |
| Small Frame | 80mm × 1440mm × 640mm, 13 pieces |
| Long Frame | 40mm × 80mm × 3mm square tube, 16 pieces |
| Tail Frame | 1.6m long × 0.8m wide × 0.7m high |
| Total Power | 15.3KW |
| Total Weight | ~5000 kgs |
