Log Feeder
Log Feeder
The Log Feeder is an essential auxiliary machine in plywood and veneer production lines. It is designed to automatically transport, align, and feed logs into veneer peeling machines or other wood processing equipment. With high efficiency, stable operation, and reduced labor requirements, this machine significantly improves production continuity and productivity.
Quantity:
1. Product Detailed Description
The Log Feeder is engineered to streamline the log handling process by automatically conveying logs from storage areas to the next processing stage, such as debarking or veneer peeling. It typically consists of a heavy-duty frame, chain or roller conveyor system, hydraulic or pneumatic pushing device, and intelligent control system.
The machine ensures smooth and consistent log feeding, minimizing manual intervention while maintaining precise positioning. It is suitable for logs of various diameters and lengths, making it adaptable to different production requirements.
2. Product Features and Advantages
High Automation
- Fully automatic feeding process reduces manual labor
- Seamless integration with veneer peeling and debarking machines
Stable and Durable Structure
- Heavy-duty steel frame ensures long service life
- Wear-resistant components reduce maintenance frequency
Efficient Log Handling
- Continuous feeding improves production efficiency
- Adjustable speed control for different log sizes
Intelligent Control System
- PLC-based control for precise operation
- Optional remote control and automated synchronization
Safety and Reliability
- Equipped with safety guards and emergency stop system
- Stable operation reduces risk of log jamming or misalignment
3. Main Applications and Use Scenarios
Primary Applications
- Plywood production lines
- Veneer peeling lines
- Log preprocessing systems
Detailed Application Scenarios
- Feeding logs into spindle or spindleless veneer peeling machines
- Supplying logs to debarkers before peeling
- Automated log transport in wood panel factories
- Integration into fully automated plywood manufacturing lines
4. Technical Parameter

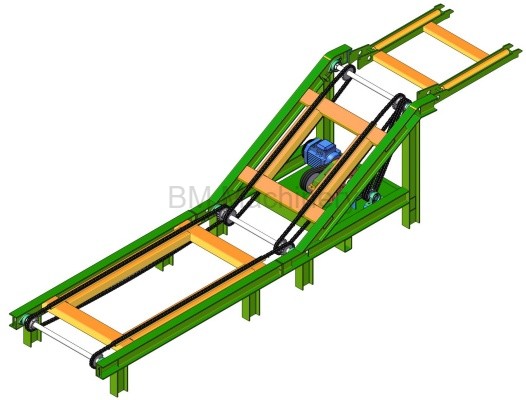

4FT debarker loading machine
Horizontal transmission length | 3000mm |
| Climbing length | 1500mm |
| Baffle | Laser-formed in one piece |
| Power | 4KW |
| Reducer | ZQ250 |
| Chain | 1.6 inch * 2 chains |
| Material | 150*150 I-beam steel |

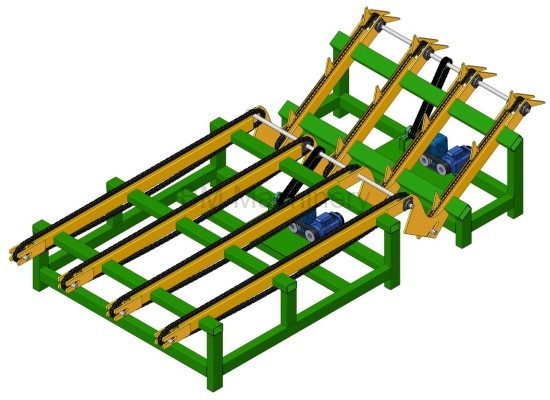

2600 type log storage and loading
| Length | 4.5 meters |
| Width | 2.2 meters |
| Chain | 1.6-inch chain with bottom rails (four tracks) |
| Motor | 4KW*2 |
| Gear reducer | ZQ250 |
| Main frame | 200mm H-beam steel |
| Chain drive connection | Universal joint coupling |
| Gear reducer chain | 1-inch double-row self-reinforcing chain |
| Photoelectric sensor | For alignment with a wood saw |
| One-meter gap at the end | For forklift loading |
